1.25Gbps Compact Bi-Di SFP Transceiver, 20km Reach

Description
The CSFP transceivers are high performance, cost effective modules supporting 1.25Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features
¡ñ Support 1.25Gbps data links
¡ñ 1310nm FP laser and PIN photodetector for 20km transmission
¡ñ 2xBi-directional transceivers in 1 SFP transceiver package
¡ñ Compliant with CSFP MSA Option 2 and SFF-8472
¡ñ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
¡ñ Compatible with SONET OC-24 system
¡ñ Compatible with RoHS
¡ñ +3.3V single power supply
¡ñ Operating case temperature:
     0 to +70°C(Commercial)
     -40°C to +85°C (Industrial)

Applications
¡ñ SONET OC-24 system
¡ñ Gigabit Ethernet
¡ñ Fiber Channel
¡ñ Switch to Switch interface
¡ñ Point to Point FTTH Application
¡ñ Other optical transmission systems

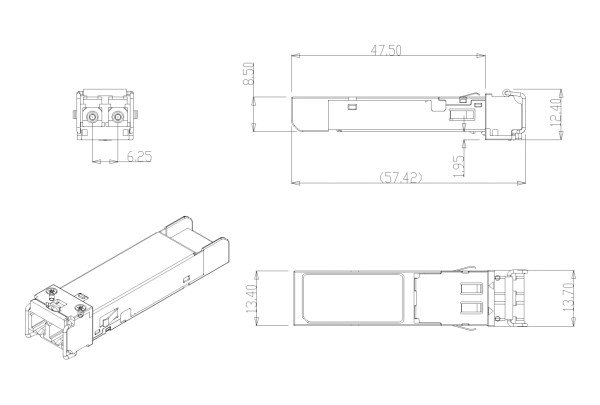

Mechanical Dimensions

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪCSFPϵÁйâÄ
£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
