12Gbps Video SFP Optical Dual Transmitter, 10km Reach
Description
F-tone Networks’s Video Dual transmitter is designed to transmit data rates from 50Mbps to 11.88Gbps£¬compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST 259 (SD-SDI). F-tone Networks’s Video transceiver supports SDI pathological patterns signals.
Features
¡ñ SD/HD/3G/6G/12G-SDI SFP DualTransmitter
¡ñ ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
¡ñ Metal enclosure for Lower EMI
¡ñ DFB laser transmitter
¡ñ Supports SDI pathological patterns for SD-SDI, HD-SDI,3G-SDI,6G-SDI and 12G SDI
¡ñ ROHS compliant(lead free)
¡ñ single 3.3V power supply
¡ñ Hot-pluggable SFP footprint
¡ñ Operating case temperature range£º0 to +70°C
Applications
¡ñ Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTE ST 292-1/2, SMPTE ST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
¡ñ UHDTV/HDTV/SDTV Service Interfaces

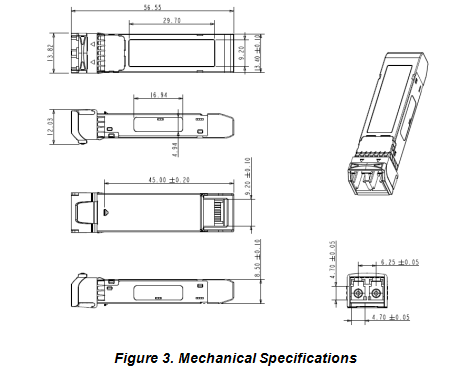

Mechanical Dimensions
Ordering Information
Part Number |
Product Description |
FTCS-2TCxx12-10D |
CWDM, 10km,SD/HD/3G/6G/12G SDI Dual Transmitter,0 ~ +70oC |
FTCS-2TCxx12-10DI |
CWDM, 10km,SD/HD/3G/6G/12G SDI Dual Transmitter,-40 ~ +85oC |
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úƷΪVideo SFPϵÁйâÄ£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
