Ultra Compact 12CH CWDM
Description
Ultra Compact 12CH CWDM
1、 Product Code产品料号
|
Item Number |
Customer Part Number |
Future-Optics Part Number |
Description |
|
1 |
NA |
FT-AJ-UC-CWDM-12-1271-0.3m-LC |
Ultra Compact 12CH CWDM ，G657A2, 900um loose tube,0.3m,LC/UPC |
2、Specification
2.1、Ultra Compact 18CH CWDM-DEMUX:
|
Parameters |
Unit |
Specification |
Note |
|
Channel Number |
NA |
12 |
|
|
Operating Wavelength |
nm |
1260~1650 |
|
|
Channel Spacing |
nm |
20 |
|
|
Add/Drop Wavelength（Channel） |
nm |
1271、1291、1311、1331、1431、1451、1471、1491、1511、1531、1551、1571 |
|
|
Channel Passband |
nm |
lc ± 6.5 |
|
|
Ripple over Pass Band |
dB |
≤0.5 |
|
|
Channel IL |
|
≤1.6 |
|
|
Adjacent Channel Isolation |
dB |
≥35 |
|
|
Non-Adjacent Channel Isolation |
dB |
≥40 |
|
|
Wavelength Thermal Stability |
nm/℃ |
≤0.002 |
|
|
Polarization Dependent Loss |
dB |
≤0.20 |
|
|
Polarization Mode Dispersion |
dB |
≤0.20 |
|
|
Directivity |
dB |
≥50 |
|
|
Return Loss |
dB |
≥45 |
|
|
Power Handling |
mW |
300 |
|
|
TDL |
dB |
≤0.5 |
|
2.3 ABSOLUTE MAXIMUM RATINGS
|
PARAMETER |
SPECIFICATION |
UNITS |
NOTE |
|
Operation Temperature |
-40~ +85 |
°C |
|
|
Operation Humidity |
5 to 90%RH Not condensed |
%RH |
|
|
Storage Temperature |
-40 ~ +85 |
°C |
|
|
Storage Humidity |
0 to 95%RH Not condensed |
%RH |
|
|
Tensile strength |
>5 |
N |

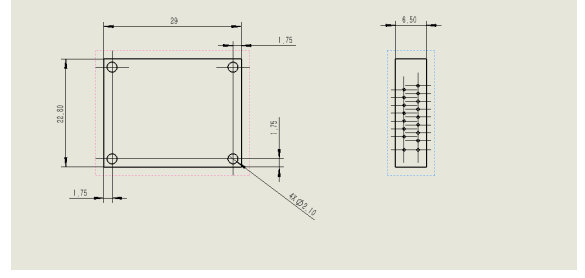

2.4MECHANICAL DRAWINGS
- 封装盒尺寸：
|
Package Dimension (mm) |
Max：29X22.8X6.5 |
|
|
Fiber Type |
G657.A2,900um Loose tube |
|
|
250um Fiber length（m） |
0.3+/-0.1 |
|
|
Connector Type |
LC/UPC |
|
|
Pigtail Color |
Nature |
|
2.5. PORT LABEL：
封装盒盒盖上贴标 ，标示端口信息 ，如Com ，1271 ，1291 ，... ，1571
2.6 产品外观要求：
光纤无脏污、无染色、无纤
3.RoHS appliance. GR-1209-Core, GR-1221-Core Generic Requirement and test standard.
注：本产品有全国产化型号可选本
产品为FT-AJ系列波分复用器 ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
