8CH 100GHz DWDM Module
Description
8CH 100GHz DWDM Module
1.Document History
|
Date |
Customer Document/Drawing Number |
Future Spec Review Number |
Note |
|
07/13/2022 |
NA |
FT-AR-8CH-DWDM |
First release |
2.Product Code
|
Item Number |
Customer Part Number |
Future Part Number |
Description |
|
1 |
NA |
NA |
8CH 100GHz DWDM Module,C21-C28,G657A2,900um Loose tube,-50~70℃ |
|
2 |
NA |
NA |
8+8CH 100GHz DWDM Module,C21-C28,G657A2,900um Loose tube,-50~70℃ |
3.Specifications
3.1 8CH 100GHz DWDM MODULE SPECIFICATION
|
Parameters |
Specifications |
Unit |
|
Channel Number |
8 |
CH |
|
Channel Center Wavelengths (nm) |
C21-C28 |
- |
|
Channel Passband（0.5dB） |
lc ±0.11 |
nm |
|
Insertion Loss |
≤2.3 |
dB |
|
Ripple |
≤0.5 |
dB |
|
PDL |
≤0.35 |
dB |
|
TDL |
≤0.6 |
dB |
|
Adjacent Isolation |
≥30 |
dB |
|
Non-adjacent Isolation |
≥40 |
dB |
|
RL |
≥45 |
dB |
|
Dir |
≥50 |
dB |
|
Optical Power (CW) |
300 |
mW |
|
Dimension |
30x16x6.5 mm |
mm |
|
Fiber Type |
G657 A2,900um Loose tube |
|
|
Fiber Length |
＞1 |
M |
|
Connector Type |
待定 |
|
|
Operating Temperature |
-50 ~ +70 |
°C |
|
Storage Temperature |
-55~ +80 |
°C |
3.2 8+8CH 100GHz DWDM MODULE SPECIFICATION
|
Parameters |
Specifications |
Unit |
|
Channel Number |
8+8 |
CH |
|
Channel Center Wavelengths (nm) |
C21-C28 |
- |
|
Channel Passband（0.5dB） |
lc ±0.11 |
nm |
|
Insertion Loss |
≤3.5 |
dB |
|
Ripple |
≤0.5 |
dB |
|
PDL |
≤0.35 |
dB |
|
TDL |
≤0.6 |
dB |
|
Adjacent Isolation |
≥30 |
dB |
|
Non-adjacent Isolation |
≥40 |
dB |
|
RL |
≥45 |
dB |
|
Dir |
≥50 |
dB |
|
Optical Power (CW) |
300 |
mW |
|
Dimension |
30x16x6.5 mm |
mm |
|
Fiber Type |
G657 A2,900um Loose tube |
|
|
Fiber Length |
＞1 |
M |
|
Connector Type |
待定 |
|
|
Operating Temperature |
-50 ~ +70 |
°C |
|
Storage Temperature |
-55~ +80 |
°C |

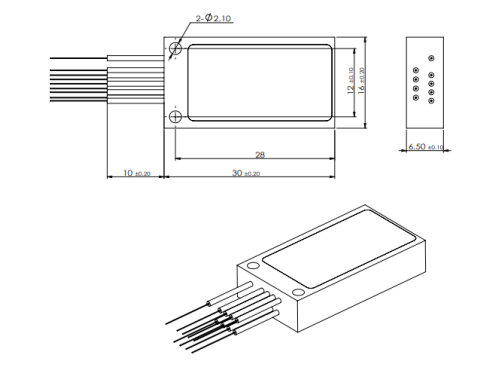

4.Mechanical Dimension
5.All materials used for the parts are RoHS compliance.
注：本产品有全国产化型号可选
本产品为FT-AR系列波分复用器，仅展示部分参数，如有需要，请联系大宝娱乐。
