±ê×¼¹âÄ£¿é

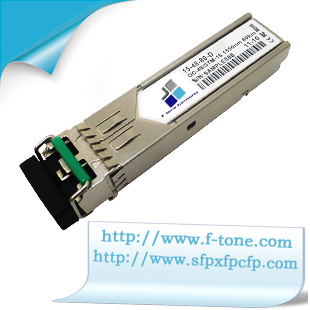

SFP-1.25G-1550NM
Specifications
- ²úÆ·ÐͺÅ: FTCS-1512-XXX
- ¼æÈÝÆ·ÅÆ: ȫϵÁÐ
- ·â×°ÀàÐÍ: SFP
- ´«ÊäËÙÂÊ: Operating Data Rate up to 622Mbps
- ´«Êä¾àÀë: 40KM~160KM¿ÉÑ¡
- ·¢É䲨³¤: 1550nm
- ½ÓÊÕ²¨³¤: 1550nm
- ÊÂÇéζÈ: ÉÌÒµ¼¶0¡æ¡«+70¡æ/¹¤Òµ¼¶-40¡æ¡«+85¡æ ¿ÉÑ¡
- Êý×ÖÕï¶Ï: ´øDDM/²»´øDDM ¿ÉÑ¡
- ½ÓÊÕÁéÃô¶È: 40KM~160KM¿ÉÑ¡
- ½ÓÊÕÁéÃô¶È: 40KM~160KM¿ÉÑ¡
Description
F-tone¡¯s broad product selection and innovative technology have made us the optical module manufacturer of choice for major networking equipment suppliers worldwide. We have taken a leading role in transforming the data communications and telecommunications equipment market from utilizing discrete optical components to leveraging the design and pay-as-you-grow flexibility offered by pluggable modules. Our transceiver products are fully compliant with Ethernet, Fiber Channel, SONET/SDH/OTN and PON standards and operate at data rates up to 400Gb/s. They are capable of distances ranging from very short reach within a datacenter to campus, access, metro, and long-haul reaches. They feature outstanding performance over extended voltage and temperature ranges, while minimizing jitter, electromagnetic interference (EMI) and power dissipation.
F-tone¡¯s FTCS-1512-XXX SFP transceivers are compatible with the Small Form Factor Pluggable MSA. They comply with SONET and SDH standards at SDH/STM-1,SONET/OC-3, And are suit for Fast Ethernet network, Optional with DDM(Digital Diagnostics), or the broader work environment£¨-40¡æ~+85¡æ£©.
FTCS-1512-XXX transmitter using a single mode 1550nm class 1 laser, meet the international safety standard IEC 60825.
Feature:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Using 9/125 ¦Ìm SMF 60km~160KM transmission distance
Optional with digital diagnostic functions
1550nm laser transmitter
Duplex LC connector
RoHS compliant and lead-free
Metal enclosure, for lower EMI
Single 3.3V power supply
Operating temperature: 0¡ãC to 70¡ãC(Standard), -40¡ãC to 85¡ãC (Industrial)
Compliant with MSA SFP Specification
Digital diagnostic monitor interface
Compatible with SFF-8472
Applications
SDH/STM-4, SONET/OC-12
Fiber Channel links
SONET/SDH Switch Infrastructure
XDSL Applications
Metro Edge Switching
WDM GBE Links
SONET/SDH Equipment Interconnect
Fiber Channel Links
| Part No. | Description |
| FTCS-1512-60 | SFP,1.25G,Single mode (1550nm,60km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1512-60I | SFP,1.25G, Single mode (1550nm,60km,LC,Temperature:-40~+85¡æ) |
| FTCS-1512-60D | SFP,1.25G,Single mode (1550nm,60km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1512-60DI | SFP,1.25G, Single mode (1550nm,60km,LC,Temperature:-40~+85¡æ,DDM) |
| FTCS-1512-80 | SFP,1.25G,Single mode (1550nm,80km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1512-80I | SFP,1.25G, Single mode (1550nm,80km,LC,Temperature:-40~+85¡æ) |
| FTCS-1512-80D | SFP,1.25G,Single mode (1550nm,80km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1512-80DI | SFP,1.25G, Single mode (1550nm,80km,LC,Temperature:-40~+85¡æ,DDM) |
| FTCS-1512-100 | SFP,1.25G,Single mode (1550nm,100km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1512-100I | SFP,1.25G, Single mode (1550nm,100km,LC,Temperature:-40~+85¡æ) |
| FTCS-1512-100D | SFP,1.25G,Single mode (1550nm,100km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1512-100DI | SFP,1.25G, Single mode (1550nm,100km,LC,Temperature:-40~+85¡æ,DDM) |
| FTCS-1512-120 | SFP,1.25G,Single mode (1550nm,120km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1512-120I | SFP,1.25G,Single mode (1550nm,120km,LC,Temperature:-40~+85¡æ) |
| FTCS-1512-120D | SFP,1.25G,Single mode (1550nm,120km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1512-120DI | SFP,1.25G,Single mode (1550nm,120km,LC,Temperature:-40~+85¡æ,DDM) |
| FTCS-1512-160 | SFP,1.25G,Single mode (1550nm,160km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1512-160I | SFP,1.25G,Single mode (1550nm,160km,LC,Temperature:-40~+85¡æ) |
| FTCS-1512-160D | SFP,1.25G,Single mode (1550nm,160km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1512-160DI | SFP,1.25G,Single mode (1550nm,160km,LC,Temperature:-40~+85¡æ,DDM) |
Notice:
The above is just list out our regular product information, if you can¡¯t find out the products which you need from the form, Please contact our sales.
For more information £¬Please mail to sales#F-tone.com (Please @ instead of #)
