±ê×¼¹âÄ£¿é
SFP-622M-1310NM-MMF
Specifications
- ²úÆ·ÐͺÅ: FTCS-1306-02X
- ¼æÈÝÆ·ÅÆ: ȫϵÁÐ
- ·â×°ÀàÐÍ: SFP
- ´«ÊäËÙÂÊ: Operating Data Rate up to 622Mbps
- ´«Êä¾àÀë: 2KM
- ·¢É䲨³¤: 1310nm
- ½ÓÊÕ²¨³¤: 1310nm
- ÊÂÇéζÈ: ÉÌÒµ¼¶0¡æ¡«+70¡æ/¹¤Òµ¼¶-40¡æ¡«+85¡æ ¿ÉÑ¡
- Êý×ÖÕï¶Ï: ´øDDM/²»´øDDM ¿ÉÑ¡
- ½ÓÊÕÁéÃô¶È: 2KM
- ½ÓÊÕÁéÃô¶È: 2KM
Description
F-tone¡¯s broad product selection and innovative technology have made us the optical module manufacturer of choice for major networking equipment suppliers worldwide. We have taken a leading role in transforming the data communications and telecommunications equipment market from utilizing discrete optical components to leveraging the design and pay-as-you-grow flexibility offered by pluggable modules. Our transceiver products are fully compliant with Ethernet, Fiber Channel, SONET/SDH/OTN and PON standards and operate at data rates up to 400Gb/s. They are capable of distances ranging from very short reach within a datacenter to campus, access, metro, and long-haul reaches. They feature outstanding performance over extended voltage and temperature ranges, while minimizing jitter, electromagnetic interference (EMI) and power dissipation.

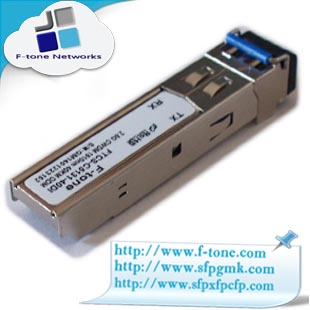

F-tone¡¯s FTCS-1306-02X SFP transceivers are compatible with the Small Form Factor Pluggable MSA. They comply with SONET and SDH standards at SDH/STM-1,SONET/OC-3, And are suit for Fast Ethernet network, Optional with DDM(Digital Diagnostics), or the broader work environment£¨-40¡æ~+85¡æ£©.
FTCS-1306-02X transmitter using a single mode 1310nm class 1 laser, meet the international safety standard IEC 60825.
Feature:
Up to 622 Mb/s bi-directional data links
Hot-pluggable SFP footprint
Using MMF 60km transmission distance
Optional with digital diagnostic functions
1310nm FP laser transmitter
Duplex LC connector
RoHS compliant and lead-free
Metal enclosure, for lower EMI
Single 3.3V power supply
Operating temperature: 0¡ãC to 70¡ãC(Standard), -40¡ãC to 85¡ãC (Industrial)
Applications
SDH/STM-4, SONET/OC-12
Fiber Channel links
| Part No. | Description |
| FTCS-1306-02 | SFP,622M,Single mode (1310nm,2km,LC,Temperature:0 ~+70¡æ) |
| FTCS-1306-02I | SFP,622M, Single mode (1310nm,2km,LC,Temperature:-40~+85¡æ) |
| FTCS-1306-02D | SFP,622M,Single mode (1310nm,2km,LC,Temperature:0 ~+70¡æ,DDM) |
| FTCS-1306-02DI | SFP,622M, Single mode (1310nm,2km,LC,Temperature:-40~+85¡æ,DDM) |
Notice:
The above is just list out our regular product information, if you can¡¯t find out the products which you need from the form, Please contact our sales.
For more information£¬Please mail to sales#F-tone.com (Please @ instead of #)
