SFF 2*5 EPON 1000BASE-PX20 ONU Transceiver

Product Description
F-tone’s FTAF-ONE-20X series of transceiver modules are Optical Network Unit (ONU) for IEEE802.3ahTM-2004 1000BASE-PX10-U applications.FTAF-ONE-20X series modules are the high performance module for 1.25Gbps data link in single fiber by using 1310nm burst-mode transmitter and 1490nm continuous- mode receiver with optional 1550nm optical signal rejection.
The transmitter section uses a multiple quantum well 1310nm FP laser and is Class ¢ñ laser compliant product according to international safety standard IEC-60825.The receiver section uses an integrated 1490 nm PIN and preamplifier mounted in an optical header and limiting postamplifier IC.
The optical burst output can be enabled by a LVTTL logic high-level input of TX_BRST. Signal Detected (SD) output is provided to indicate the detection of an input optical signal of receiver.

Standard
¡ñ Compliant with Small Form Factor (SFF) MSA
¡ñ Compliant with IEEE Std 802.3ahTM-2004 1000BASEPX10-U
¡ñ Compliant with FCC 47 CFR Part 15, Class B Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I

Product Features
¡ñ Single fiber bi-directional data links with symmetric1.25Gbps upstream and 1.25Gbps downstream
¡ñ Integrated WDM filter for dual wavelength Tx/Rx operation at 1310/1490nm
¡ñ 1310nm burst-mode transmitter with FP laser for 1000BASE-PX10
¡ñ 1490nm continuous-mode receiver with PIN-TIA
¡ñ Tx/Rx distance up to 10 km
¡ñ 0 to 70¡æoperating ambient temperature
¡ñ 2×5 SFF package with SC receptacle
¡ñ Single 3.3V power supply
¡ñ LVPECL compatible data input/output interface
¡ñ LVTTL transmitter burst-mode control
¡ñ LVTTL receiver signal-detected indication
¡ñ Low EMI and excellent ESD protection
¡ñ Class I laser safety standard IEC-60825 compliant
¡ñ RoHS compliance

Application
¡ñ Gigabit Ethernet Passive Optical Networks (GE-PON) – ONU side
¡ñ Gigabit Ethernet Point-to-Point Bi-directional Transmission
¡ñ Media Converts for Fiber-In-The-Loop (FITL)
¡ñ Point to Multi Point Service (P2MP)

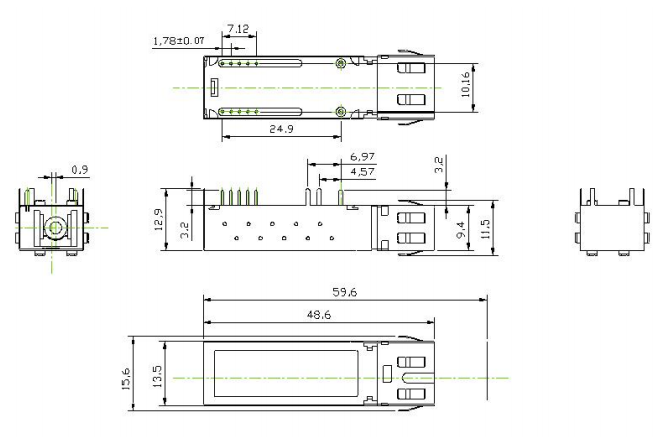

Mechanical Specifications

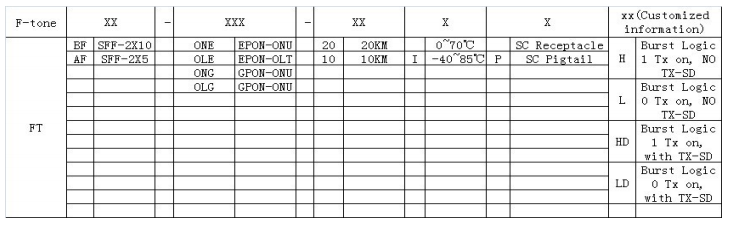

Ordering information
