2×5 SFF 1.25Gbps CWDM Transceiver Module

0.0/5 rating (0 votes)

Description

2×5 SFF 1.25Gbps CWDM Transceiver Module

Product Description
F-tone’s FTAF-Cxx12-xxx CWDM series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 1500Mbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.

Product Features
● CWDM Laser Diode Transmitter
● Up to 100 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● LVPECL/CML Differential Inputs /Outputs and LVPECL or LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Fiber Channel Switch Infrastructure
● Gigabit Ethernet Switches and Routers
● Other optic links

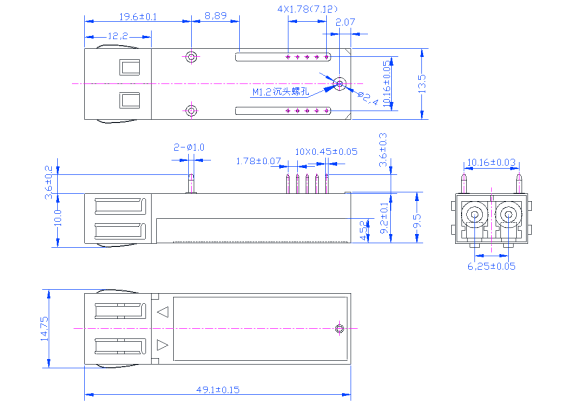

Mechanical Specifications

A17

Ordering information

Type	Fiber Type	Wavelength(nm)	Fiber Length(Km)	Operating case temperature range
FTAF-CLxx12-20	SM	1270~1430	20	Standard：0 to +70℃
FTAF-CLxx12-40	SM	1270~1430	40	Standard：0 to +70℃
FTAF-CLxx12-60	SM	1270~1430	60	Standard：0 to +70℃
FTAF-CHxx12-20	SM	1450~1610	20	Standard：0 to +70℃
FTAF-CHxx12-40	SM	1450~1610	40	Standard：0 to +70℃
FTAF-CHxx12-60	SM	1450~1610	60	Standard：0 to +70℃
FTAF-CHxx12-80	SM	1470~1610	80	Standard：0 to +70℃
FTAF-CHxx12-H0	SM	1470~1610	100	Standard：0 to +70℃

FTAF-CLxx12-20I	SM	1270~1430	20	Industrial： -40°C to +85°C
FTAF-CLxx12-40I	SM	1270~1430	40	Industrial： -40°C to +85°C
FTAF-CLxx12-60I	SM	1270~1430	60	Industrial： -40°C to +85°C
FTAF-CHxx12-20I	SM	1450~1610	20	Industrial： -40°C to +85°C
FTAF-CHxx12-40I	SM	1450~1610	40	Industrial： -40°C to +85°C
FTAF-CHxx12-60I	SM	1450~1610	60	Industrial： -40°C to +85°C
FTAF-CHxx12-80I	SM	1470~1610	80	Industrial： -40°C to +85°C
FTAF-CHxx12-H0I	SM	1470~1610	100	Industrial： -40°C to +85°C

注：本产品有全国产化型号可选

本产品为FTAF系列，仅展示部分参数，如有需要，请联系大宝娱乐。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
