Description
The F-tone Networks Technologies FTCQ-4X-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 11.3 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 11.3Gbps per channel
¡ñ 4 channels 850nm VCSEL array
¡ñ 4 channels PIN photo detector array
¡ñ Low power consumption <1.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
¡ñ Single MPO connector receptacle
¡ñ Operating case temperature 0°C to +70°C
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)

Applications
¡ñ 40G Ethernet and OTU3
¡ñ Datacom/Telecom switch & router connections
¡ñ Data Aggregation and Backplane Applications
¡ñ Proprietary Protocol and Density Applications
¡ñ Infiniband transmission at 4ch SDR, DDR and QDR

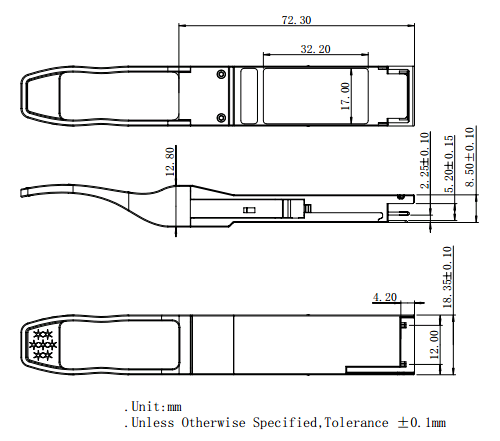

Mechanical Dimensions

Ordering information

References

1. SFF-8436 QSFP+

2. Ethernet 40GBASE-SR4
