32GFC 850nm Multimode SFP28 Active Optical Cable (FTCS-28G-CS-Oxxx)
Description
Description
F-tone Networks SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.
The F-tone Networks Technologies FTCS-28G-CS-Oxxx is a single-Channel, Pluggable, Fiber-Optic SFP28 for 32GFC Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 28.05Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector.
Features
● Hot-pluggable SFP28 form factor
● Supports 28.05Gbps data rate
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF with FEC
● 850nm VCSEL laser and PIN photo-detector
● Internal CDR on both Transmitter and Receiver channel
● Single 3.3V power supply
● Power dissipation < 1W
● Digital diagnostics functions are available via the I2C interface(Optional)
● RoHS 2.0 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 32G Fiber Channel

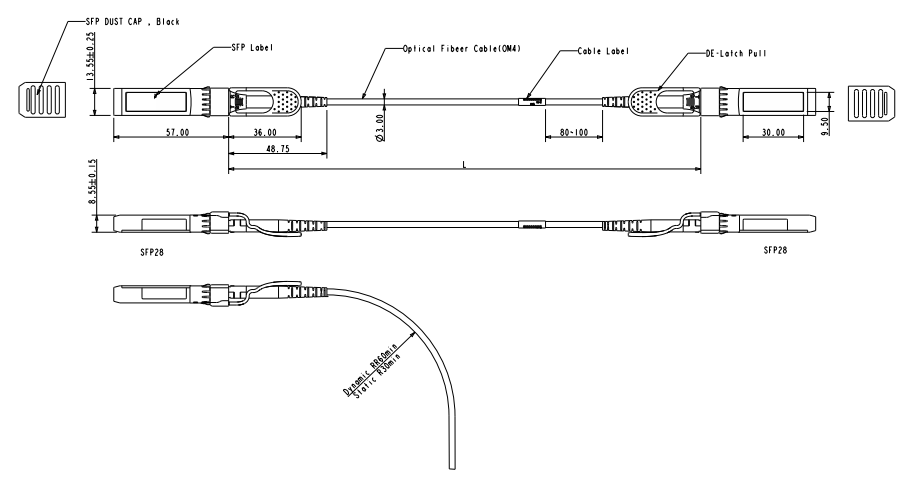

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-28G-CS-Oxxx |
28.05Gbps(32GFC), 850nm; SFP28 Active Optical Cable ；0ºC ~ +70ºC |
|
FTCS-28G-CS-OxxxI |
28.05Gbps(32GFC), 850nm; SFP28 Active Optical Cable ；-40ºC ~ +85ºC |
|
xxx :001~070 |
1~70 Length in meters on OM3 MMF with FEC |
|
xxx :001~100 |
1~100 Length in meters on OM4 MMF with FEC |
|
Further details are available from any F-tone Networks sales representative. |
|
本产品为25G~400G高速光� ？橄盗�，如有需要，请联系大宝娱乐 。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
