Polarization Insensitive Optical Circulator
Features£º |
High isolation & High Return Loss |
Application£º |
EDFA,DWDM and OTDR |
Specifications £º
Type Parameter |
3 Port |
4 Port |
|||
Operating wavelength (nm) |
1310 £¬1450£¬1480 £¬1550 , 1580 £¬1610 |
1550 |
1310 £¬1450£¬1480 £¬1550 , 1580 £¬1610 |
1550 |
|
Bandwidth (nm) |
±30 |
1520~ 1620(C+L) |
±30 |
1520~ 1620(C+L) |
|
Typ. Peak Isolation |
50 |
50 |
50 |
50 |
|
Isolation 23C (dB) |
≥40 |
≥35 |
≥40 |
≥35 |
|
Insertion Loss (dB) |
≤0.8 |
≤ 1. 1 |
≤ 1.0 |
≤ 1.2 |
|
PDL (dB) |
≤0. 15 |
≤0.20 |
|||
Return loss (dB) |
≥50 |
||||
PMD (ps) |
≤0. 1 |
||||
Directivity |
≥50 |
||||
Power handling (mW) |
≤500 |
||||
Fiber Type |
SMF-28e |
||||
Operating temperature (C) |
0 ~ +70 |
||||
Storage temperature (C) |
-40 ~ +85 |
||||

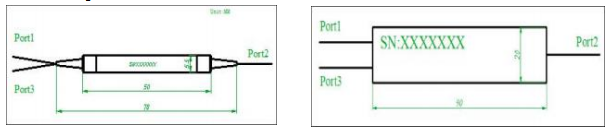

Package Dimensions (mm) |
For bare fiber or 900um loose tube |
φ5.5×L38 or φ5.5×L50 |
φ5.5×L64 |
||
For 3mm or 2mm cable |
L90*W20*H9.5(P2) |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower
*The transmission optical path of 3Ports is different from 4Ports £º3Ports £º1 -> 2 £¬2 -> 3 £» 4Ports £º1 -> 2, 2 -> 3, 3 -> 4
Packing Dimensions£º
Ordering Information £º
FCIR |
wavelength |
Type |
Grade |
0 |
Package |
Pigtail Type |
Length |
Connector |
FCIR |
1310= 1310nm 1450= 1450nm 1480= 1480nm 1550= 1550nm 1580= 1580nm 1610= 1610nm CL00= 1520~ 1620nm |
3=3Port |
P=P |
0 |
1=P1(5.5*50mm) |
1=250um bare fiber |
H=0.5m |
0=None |
