10G CWDM DFB TOSA

10G CWDM DFB TOSA

0.0/5 rating (0 votes)

Description

10G CWDM DFB TOSA

Features
● multi-quantum well(MQW) DFB laser
● Integrated monitor PD
● Low threshold current
● High reliability
● LC receptacle
● Operating case temperature:
      Standard : 0 to +70°C
      Industrial : -40 to +85°C

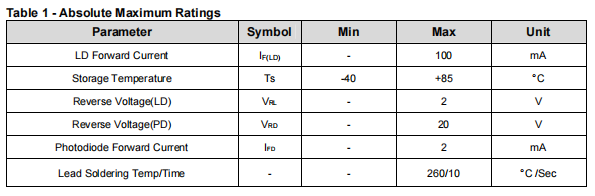

Absolute Maximum Ratings

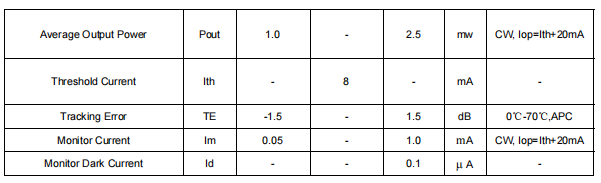

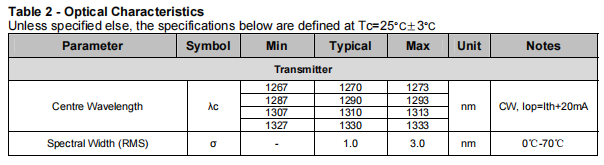

9Optical Characteristics

99

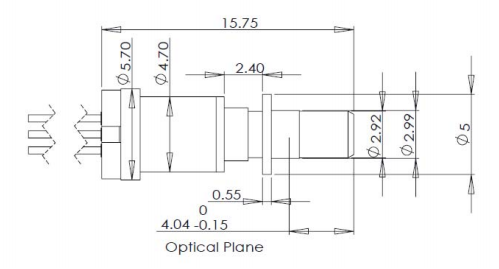

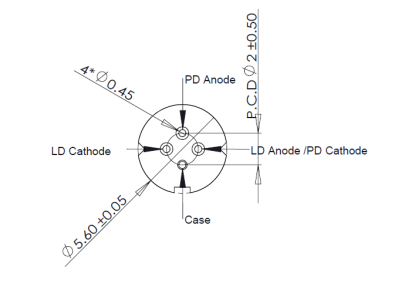

TOSA Dimension and Pin Assignment

9

9


Ordering information

9











注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
