标准光�？�

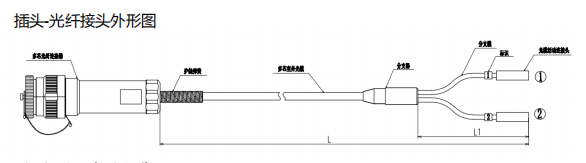

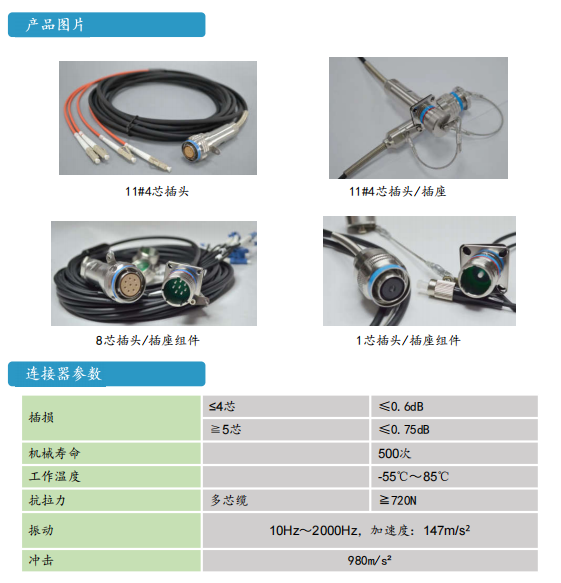

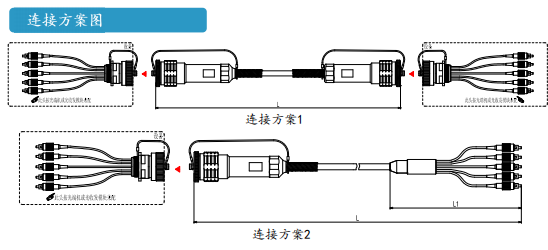

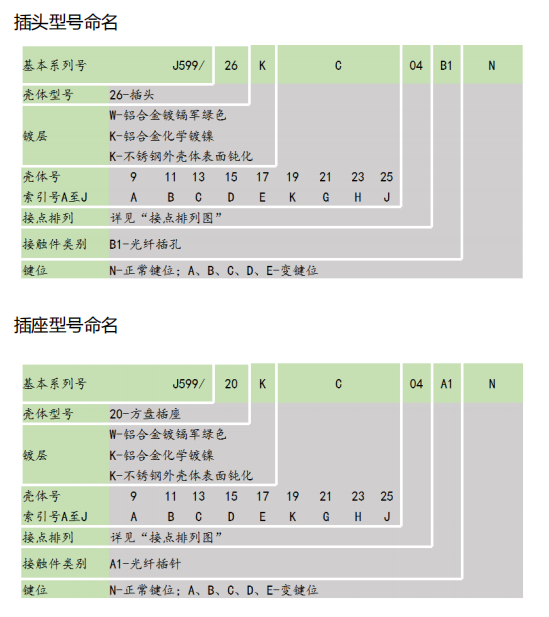

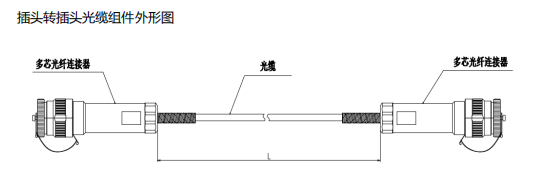

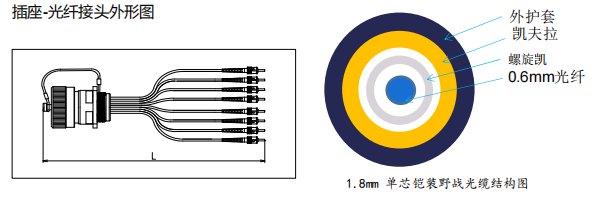

J599系列光纤连接器
Description
产品描述
● 切合GJB599A（MIL-DTL-38999)Ⅲ系列接口
● 五键定位，具有盲插和防错差及抗振功效
● 三头螺纹快速连接，并带有防松脱结构
● 连接器损耗小、可靠性高；具有防水、防尘、耐腐化等特点
● 产品适用于海洋舰船设备通信、机载设备、酸碱、盐酸、湿润等 卑劣情况、军用通信及室外卑劣情况通讯
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
Related Products
100GBASE-SR4 QSFP28 Optical Transceiver for liquid cooling
100GBASE-SR4 QSFP28 Optical Transceiver for liquid cooling
Description
The F-tone Networks 100G QSFP28 SR4 (FTQ2-HG-SR4-M2-xxx) is designed for use in 100-Gigabit Ethernet links up to 100m over Multi-Mode Fiber (MMF) especially for liquid immersion environment. It is compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4.
J599 Ⅲ系列电连接器
J599 Ⅲ系列电连接器
产品描述
● 切合 GJB599A(MIL-DTL-D38999) Ⅲ系列
● 接纳三头螺纹快速连接，并带防松脱机构，具有体积小，重量轻，接触件密度高，具有电磁屏蔽功效
● 接触件压接可取卸，插针防斜插
J599 A8系列光纤连接器
J599 A8系列光纤连接器
产品描述
● 接口尺寸切合GJB599A(MIL-DTL-38999)Ⅲ，性能切合ARINC801标准
● 外壳体可选用差别质料及镀层适应差别情况要求
● 五键定位，有盲插和防错插功效，三头螺纹快速连接，并带有防松脱结构
J599/MT系列光纤连接器
J599/MT系列光纤连接器
产品描述
● 切合GJB599A（MIL-DTL-38999)Ⅲ系列接口
● 五键定位，具有盲插和防错差及抗振功效
● 三头螺纹快速连接，并带有防松脱结构
