J599 Ⅲ系列电连接器

0.0/5 rating (0 votes)

Description

产品描述
● 切合 GJB599A(MIL-DTL-D38999) Ⅲ系列
● 接纳三头螺纹快速连接，并带防松脱机构，具有体积小，重量轻，接触件密度高，具有电磁屏蔽功效
● 接触件压接可取卸，插针防斜插
● 具有防火壳体、铝合金壳体和多种镀层
● 具有高温下的高强度振动特性，适合在卑劣的风沙和湿润的场合下使用

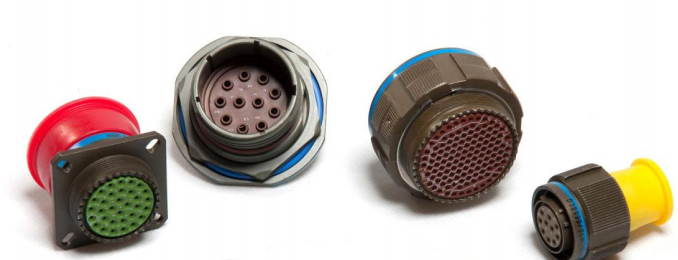

产品图片

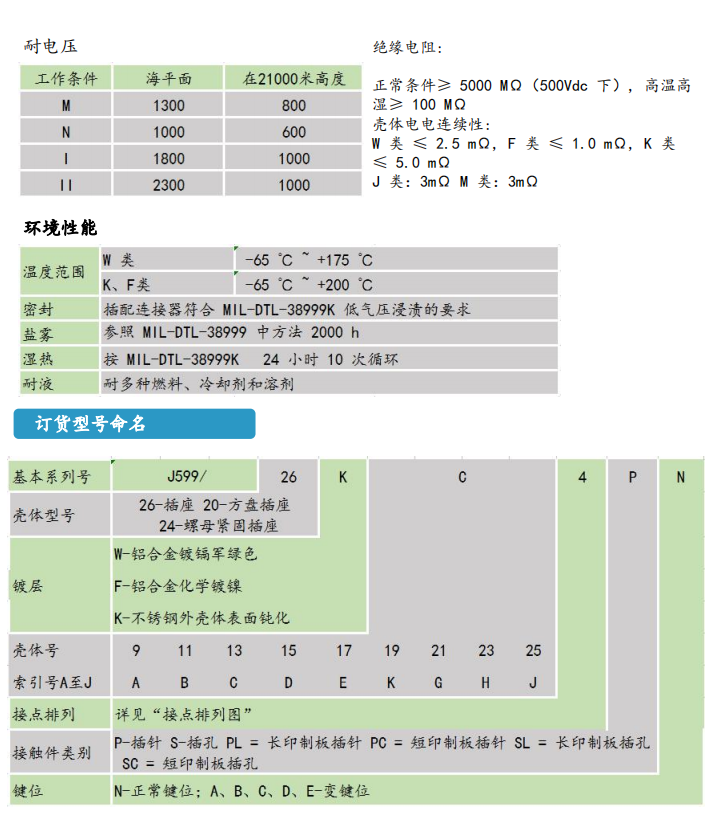

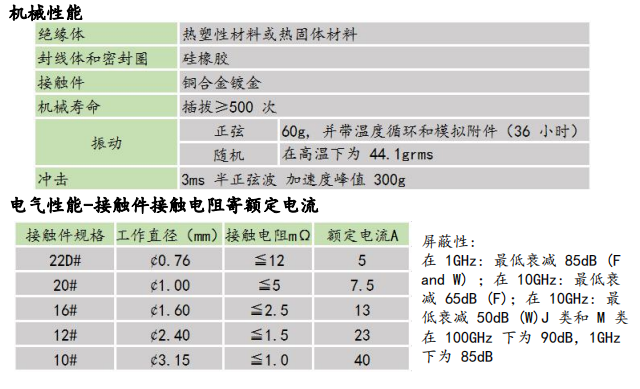

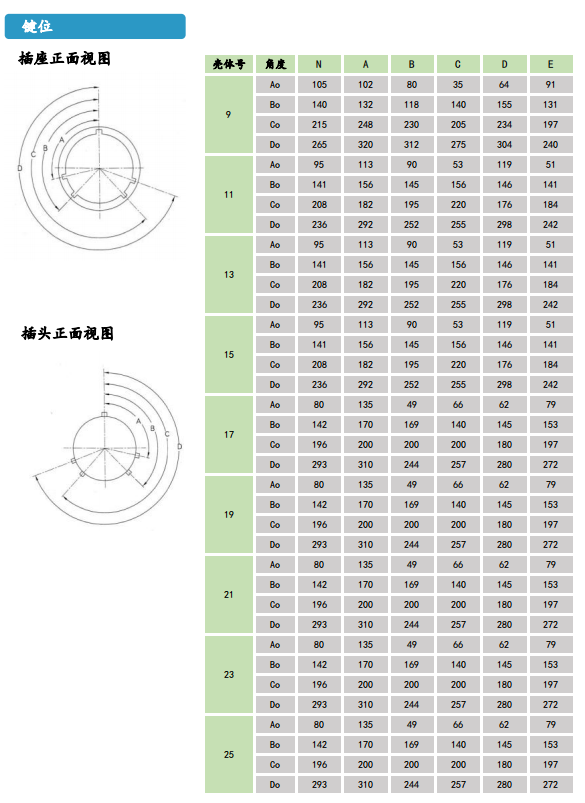

连接器性能

A 8 A 8 A 8 A 8 A 8 A 8 A 8 A 8

注：本产品有全国产化型号可选
