USB 3.0 Active Optical Cable

Description
F-tone Networks USB 3.0 AOC is consisted of two USB3.0 Standard-A connectors and multimode optical fiber, and each end has IC/VCSEL/PD, to complete the OE & EO conversion.
Note1: the fiber part of USB 3.0 AOC does not carry power, so upstream connector should be powered by Host side, and F-tone Networks Optical Active Cables do not provide or transmit power to devices.
Note2: Host side should be USB 3.0 compatible computer* (host computer) with a USB 3.0 compliant operating system.
* USB 3.0 AOC will not function when connected to USB2.0/USB1.1 Host.

Features
¡ñ Extends USB 3.0 super speed devices up to 100m over fiber optics(MMF OM2)
¡ñ Supports self-powered USB 3.0 compliant device
¡ñ Up to 5 Gbps data rate
¡ñ 850nm VCSEL transmitter, PIN photo-detector receiver
¡ñ Operates with USB 3.0 super speed hot controllers
¡ñ Supports all major operating systems including Windows, Mac OS, and Linux
¡ñ Number of devices can be increased using additional hubs
¡ñ Low power consumption
¡ñ Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C
¡ñ All-metal housing for superior EMI performance
¡ñ RoHS compliant (lead free)

Applications
¡ñ Industrial Control
¡ñ Digital Signage
¡ñ Home Network Integration
¡ñ Medical Device Connectivity
¡ñ KVM Extension
¡ñ Remote Desktop USB 3.0 Connections
¡ñ Security: web camera, access control
¡ñ USB 3.0 Devices Sharing: print, scan, storage

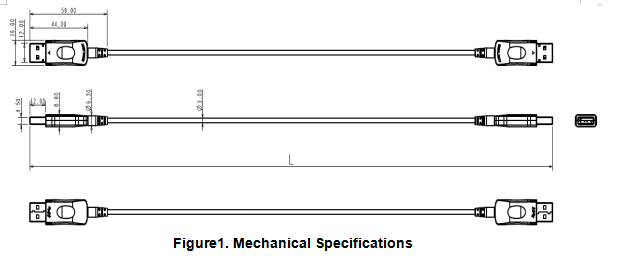

Mechanical

Ordering Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úÆ·½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
