FTTH入户皮线光缆室内单模双芯玄色蝶形引入缆
Description
双芯自承式皮线光缆
2-Fiber Self-Supporting Covered Wire Cable

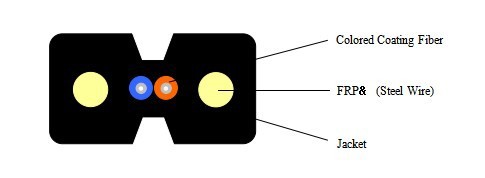

结构图Profile View
光纤参数 Fiber Parameters
|
编号 No. |
项目Items |
单位Unit |
参数Specification |
参数Specification |
|
|
G.652D |
G.657A1 |
||||
|
1 |
模场直径Mode Field Diameter |
1310nm |
9.2±0.4 |
9.0±0.4 |
|
|
1550nm |
10.4±0.5 |
10.1±0.5 |
|||
|
2 |
包层直径Cladding Diameter |
μm |
124.8±0.7 |
124.8±0.7 |
|
|
3 |
包层不圆度Cladding Non-Circularity |
% |
≤0.7 |
≤0.7 |
|
|
4 |
芯/包层同心度误差Core-Cladding Concentricity Error |
μm |
≤0.5 |
≤0.5 |
|
|
5 |
涂覆层直径Coating Diameter |
μm |
245±5 |
245±5 |
|
|
6 |
涂覆层不圆度Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
|
|
7 |
包层/涂覆层同心度误差Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
|
|
8 |
光缆截止波长Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
|
|
9 |
衰减系数Attenuation(max.) |
1310nm |
dB/km |
≤0.4 |
≤0.35 |
|
1550nm |
dB/km |
≤0.3 |
≤0.21 |
||
|
10 |
宏弯附加衰减Macro-Bending Loss |
1turn×10mm radius @1550nm |
dB |
/ |
≤0.75 |
|
1turn×10mm radius @1625nm |
dB |
/ |
≤1.5 |
||
光缆参数 Cable Parameters
|
项目 Items |
指标 Specifications |
|
|
光纤芯数 Fiber Count |
2 |
|
|
着色涂覆光纤 Colored Coating Fiber |
外径 Dimension |
250±15μm |
|
颜色Color |
蓝 Blue 橙 Orange |
|
|
护套 Jacket |
外径 Dimension |
（2.0±0.1）mm×（3.1±0.1）mm |
|
质料 Material |
LSZH或PVC |
|
|
颜色 Color |
黑 Black |
|
|
增强元件 Strength Member |
FRP＆ 钢丝 (Steel Wire) |
|
光缆机械和情况性能 Mechanical and Environmental Characteristics
|
项目 Items |
单位 Unite |
参数值 Specifications |
|
|
拉伸（恒久） Tension（Long Term） |
N |
100 |
|
|
拉伸（短期） Tension（Short Term） |
N |
200 |
|
|
压扁（恒久） Crush（Long Term） |
N/10cm |
1000 |
|
|
压扁（短期） Crush（Short Term） |
N/10cm |
2200 |
|
|
最小弯曲半径（动态） Min. Bend Radius（Dynamic） |
mm |
30 |
25 |
|
最小弯曲半径（静态）Min. Bend Radius（Static） |
mm |
15 |
10 |
|
事情温度Operating Temperature |
℃ |
-20～+70 |
|
|
贮存温度Storage Temperature |
℃ |
-20～+70
|
|
