产品简介 Product introduction：

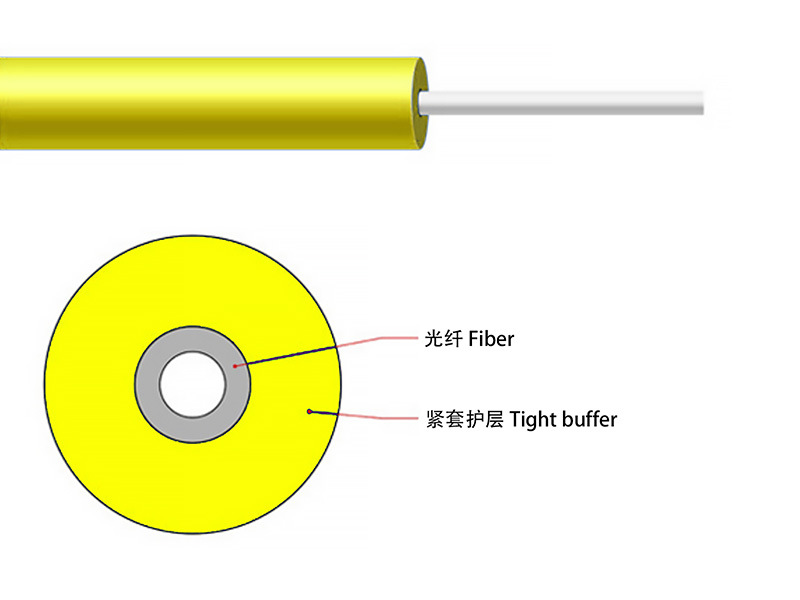

通例室内900um紧套光缆，是指在被覆光纤外挤附一层外径0.9mm的塑料缓冲质料。通过选择优质的光纤，使用专用设备，配合精密模具，使产品具有优良性能。

900 um tight set of optical cable, refers to the outside coating fiber packed with a diameter of 0.9 mm layer of plastic buffer material. By selecting high quality fiber, the use of special equipment, with precision mould, make the products with excellent performance.

产品技术特点Characteristics:
◆柔软，弯曲半径小，易剥纤It’s soft with small bending ratio, and easily to be stripped .
◆良好的阻燃特性It’s soft with small bending ratio, and easily to be stripped .
◆良好的崎岖温稳定特性It’s available under high and low temperatures .
产品应用规模Applications:
◆室内光缆成缆，半制品订制 Components for indoor fiber cables
◆通信布线中跳线尾纤制作 Patch cords and pigtails
◆裸纤�
；�Protection for bare fibers
差别质料事情温度规模Temperatures:
◆PVC:A:﹣20℃~﹢70℃B:﹣20℃~﹢90℃
◆Hytrel:﹣40℃~﹢120℃
◆LSZH:﹣20℃~﹢70℃
◆Nylon:﹣40℃~﹢120℃
产品标准Standard：
YD/T901-2009&IEC60794-1

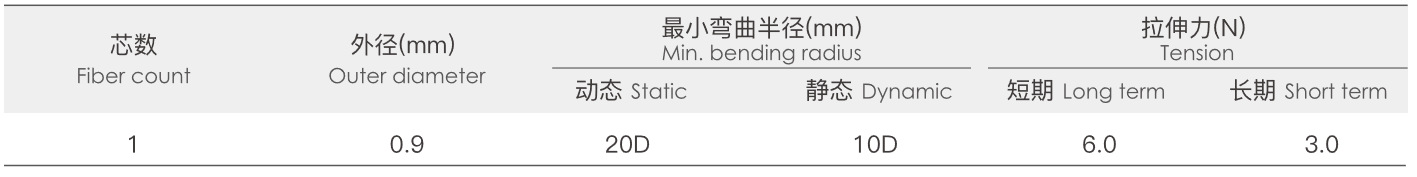

技术参数Specifications:
