100GBASE-CWDM4 QSFP28 Optical Transceiver Module

100GBASE-CWDM4 QSFP28 Optical Transceiver Module

0.0/5 rating (0 votes)

Description

Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-CWDM4 of the IEEE 802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in IEEE 802.3bm. The high performance cooled CWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3bm requirements.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP MSA. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 26Gbps per channel
¡ñ 4 DFB-based CWDM cooling transmitter
¡ñ 4 channels PIN ROSA
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Low power consumption <4W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to reach 10km for G.652 SMF
¡ñ Duplex LC receptacles
¡ñ Built-in digital diagnostic functions
¡ñ Operating case temperature -40°C to +85°C
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)

Applications
¡ñ Data Center Interconnect.
¡ñ 100G CWDM4 applications.
¡ñ Infiniband EDR interconnects.
¡ñ Enterprise networking

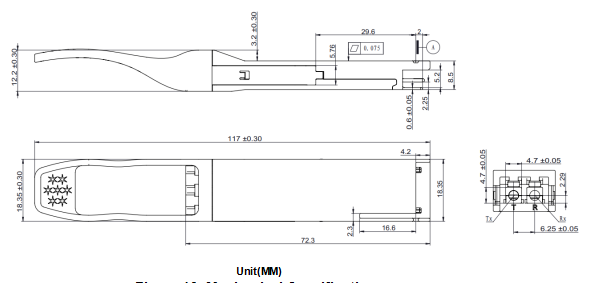

Mechanical DimensionsFTQ2 HG CWDM4 10I

Ordering information

Part Number

Product Description

FTQ2-HG-CWDM4-10I

QSFP28, 100GBASE CWDM4(1271/1291/1311/1331nm), 10km, -40°C to +85°C













±¾²úƷΪ25G~400G¸ßËÙ¹âÄ £¿éϵÁУ¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
