Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant with the QSFP MSA,CLR4 MSA and portions of IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in CLR4 MSA. The high performance Uncooled CWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 2km links .The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Based on 100G CLR4 MSA baseline requirement
¡ñ Transmission data rate up to 25Gbps per channel
¡ñ 4 x 25Gb/s DFB-based CWDM uncooled transmitter
¡ñ 4 channels PIN ROSA
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Non airtight optical engine design
¡ñ Qualified under temperature 85°C and humidity 85% @500 hours (the variation of TX≤2.5 dBm, RX≤1.5 dBm)
¡ñ Low power consumption <3.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Up to reach 2km for G.652 SMF
¡ñ Duplex LC receptacles
¡ñ Built-in digital diagnostic functions
¡ñ 3.3V power supply
¡ñ RoHS 6 compliant (lead free)
¡ñ Case operating temperature
Commercial: 0 ~ +70¡æ
Industrial: -40 ~ +85¡æ

Applications
¡ñ Data Center Interconnect.
¡ñ 100G CLR4 applications.
¡ñ Enterprise networking

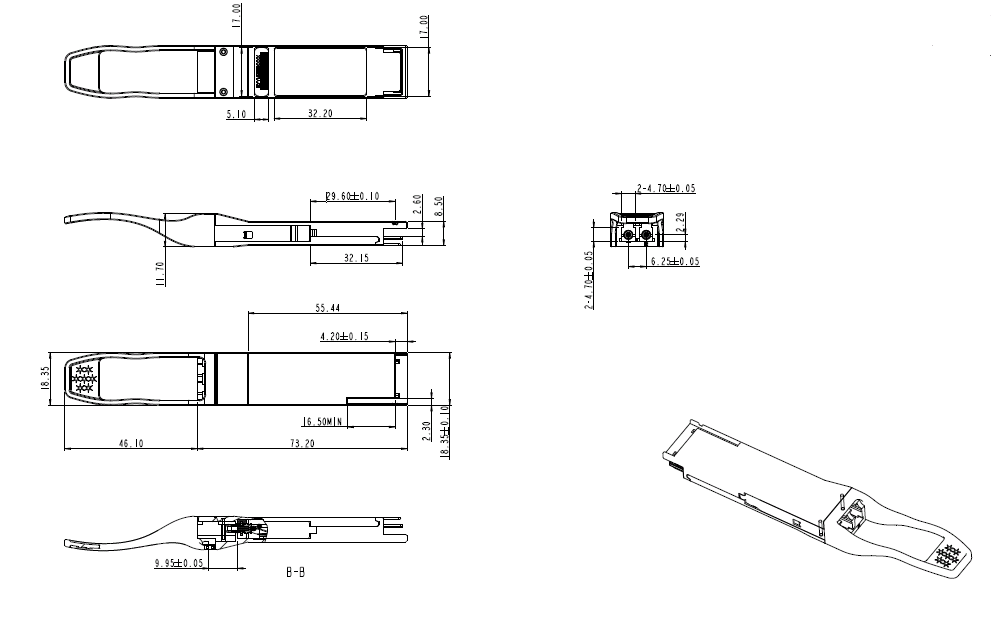

Mechanical Dimensions

Ordering Information
