84Mb/s 单模单纤光收发一体�？�

84Mb/s 单模单纤光收发一体�？�

0.0/5 rating (0 votes)

Description

84Mb/s 单模单纤光收发一体�？�
84Mb/s TTL SINGLE MODE BI-DIRECTIONAL SINGLE FIBER TRANSCEIVER

特点:
● 双波长复用单模单纤收发一体�？�,发射、接收独立事情
● 发射器件可划分选用 1310nm FP\1550nm FP 或 1490nmDFB\1550nm DFB
● +3.3V /+5V 供电
● SC/FC/ST 插拔式或尾纤型光接口
● 接口电平兼容标准 TTL 电平和 CMOS 电平
● 标准 1×9 管脚封装

Feature:
● Single Fiber Bi-Directional SM optical Transceiver
● Transmitter section Selects 1310nm FP \1550m FP LD or 1490nm DFB\1550nm DFB
● Standard +3.3V /+5V Power Supply
● SC/FC/ST or pigtail optical interface
● Standard TTL data output with signal detect indication, compatible with CMOS level
● Standard 1×9 package

应用:
● 84Mb/s 及以下速率的光纤接入网、SDH 系统的应用

Applications:
● Applied to optics fiber transmission systems,such as SDH and digital video optical terminal devices with bit
rate up to 84Mbps.



  产品型号:FT-61-B344x-61

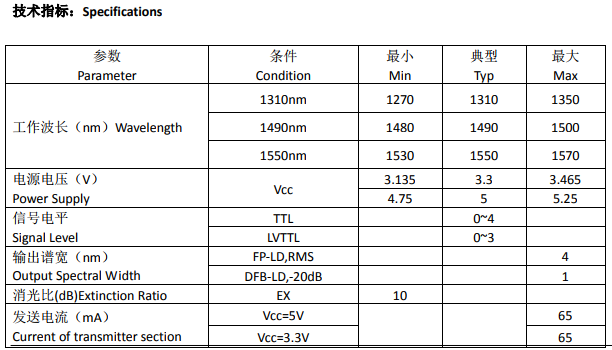

38







Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
