0-10Mb/s 多模单纤光收发一体�？�

0-10Mb/s 多模单纤光收发一体�？�

0.0/5 rating (0 votes)

Description

2.5Gb/s PECL 单模双纤光收发一体�？�
2.5Gb/s PECL SINGLE MODE DUPLEX FIBERS OPTICAL TRANSCEIVER

特点:
● SC/FC/ST 或尾纤型光接口,单模双纤光收发一体�？�
● +3.3V /+5V 供电
● 接口电平兼容标准 PECL 电平
● 标准 1×9 管脚封装,引脚配置与 Multisource 协议兼容
● 发射器件可选用 1310nm 的 FP 激光器或 1550 DFB 激光器
● 接收接纳平面结构 InGaAsP PIN 探测器

Features:
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Single mode Duplex fibers optical transceiver
● +3.3V /+5V Power Supply
● Standard PECL data output with signal detect indication
● Multi-sourced 1×9 package
● High quality 1310nm MQW-FP LD/ 1550nm DFB LD
● Receiver has a planner InGaAsP PIN

应用:
● 2.5Gb/s 及以下速率的光纤传输系统,如 SDH 系统、数字视频光端机等。

Applications:
● Applied to optical fiber transmission systems,such as SDH and digital video optical terminal devices with bit
rate up to 2.5Gbps



  产品型号:FT-61-M492x-41

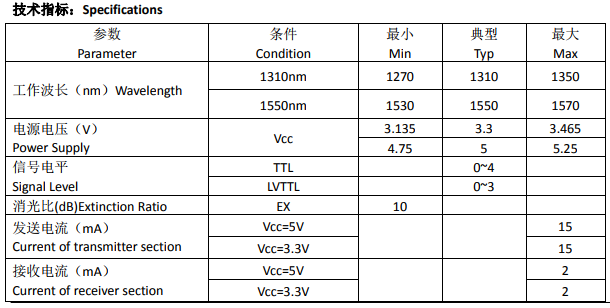

19







Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
