6GHz DSFP-RF 2T2R Analog Optical Transceiver

Features
¡ôTwo optical transmitter and two optical receiver integrated
¡ô Innovative design of golden finger for RF transmission
¡ô Pluggable LC/PC optical connector
¡ôWide operating frequency from 100MHz to 6GHz
¡ôAutomatic optical power control
¡ô Both Tx and Rx have optical power monitoring function
¡ô High dynamic input and output range
¡ô I2C interface
¡ô Low power consumption

Applications
¡ôWiMAX /Wi-Fi/ 4G / 5G/ 6G
¡ô Mobile backhaul
¡ôGPS/BEIDOU signal transport
¡ôAntenna remoting
¡ô Distributed antenna system

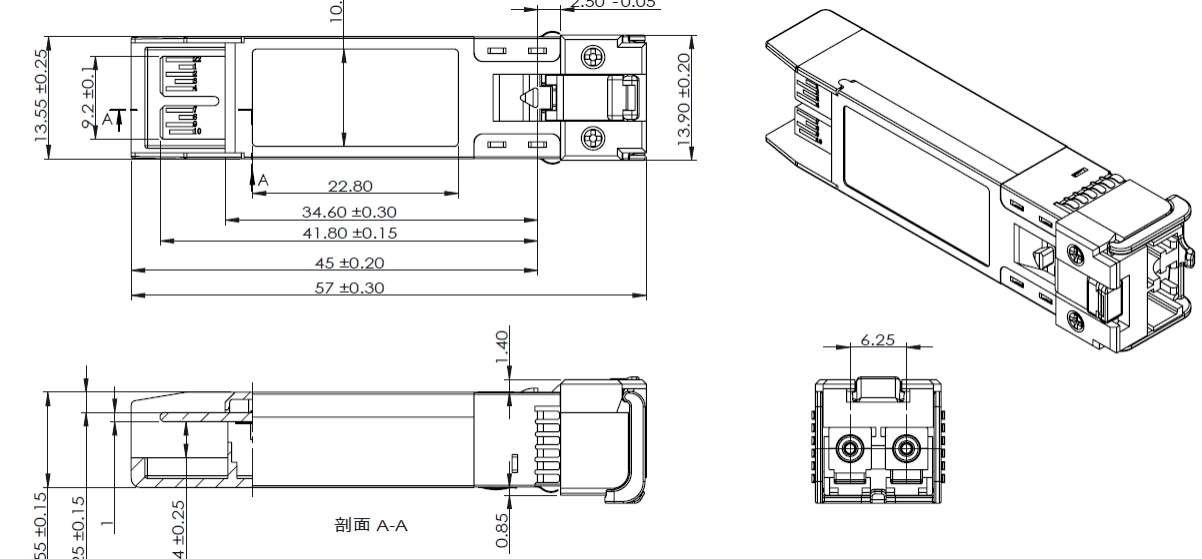

Mechanical (unit: mm)

Ordering Information

Note:
(1) Other wavelengths can be customized;
(2) Other types of optical fiber connector type can be customized.
(3) see the Connector and Interface part(2)£º“The relative position of Tx1/Rx1 and Tx2/Rx2 optical direction” for more details.

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
