20GHz Mini Analog Optical Receiver with SM Fiber

Features
¡ñ Small size: 19.8*16.0*9.6mm
¡ñ High responsivity: ≥0.6 @ 1310nm
                                ≥0.7 @ 1550nm
¡ñ Wide operating frequency from 10MHz to 20GHz
¡ñ Wide wavelength range from 1260nm to 1620nm
¡ñ DC-block and matched to 50 Ohm

Applications
¡ñ Antenna remoting
¡ñ GPS signal transport
¡ñ Wireless signal transport
¡ñ Distributed antenna system
¡ñ High speed test and measurement
¡ñ Video Signal Distribution in HFC and FTTx Nodes

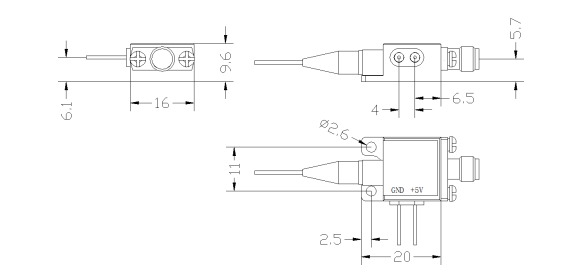

Mechanical (unit: mm)

Ordering Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪFTRFRϵÁÐ£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
