40Mbps 2×10 SFF TTL MM Transceiver Module
Description
40Mbps 2×10 SFF TTL MM Transceiver Module
Product Description
FLBF-8502-02DI series of transceiver modules are the perfect solution for Low-speed communication networks.FLBF-8502-02DI Small Form Factor (SFF) transceivers comply with the 2×10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FLBF-8502-02DI SFF transceivers support data rates up to 40Mbps.
FLBF-8502-02DI SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 850nm wavelength Laser Transmitter
● Up to 2Km on 62.5/125μm MMF
● Single 3.3V power supply
● Standard 2×10 pin footprint (MSA Compliant)
● Operating Temperature Range (-40℃ to +85℃)
● Duplex LC connector
● TTL Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

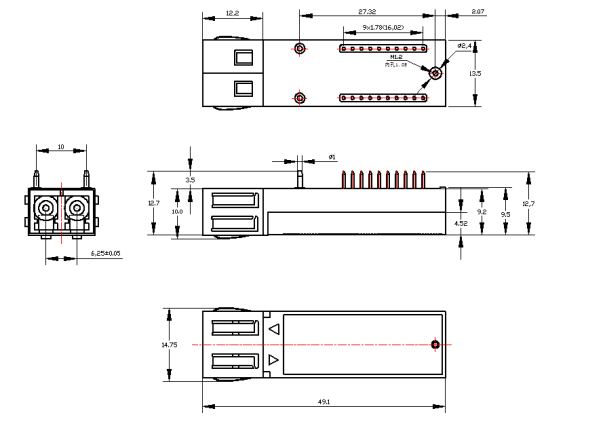

SFF Outline Drawing
Ordering information
|
Part Number |
Product Description |
|
FLBF-8502-02D |
40Mbps 2×10 SFF TTL MM Transceiver Module, 0ºC ~ +70ºC |
|
FLBF-8502-02DI |
40Mbps 2×10 SFF TTL MM Transceiver Module, -40ºC ~ +85ºC |
注：本产品有全国产化型号可选
本产品为FLBF系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
