2×5 SFF 4.25Gbps MM Transceiver Module

Product Description
F-tone' s FTAF-8542-02I series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 4.25Gbps. The module is fully compliant with the 2×5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.

Product Features
¡ñ 850nm VCSEL Transmitter
¡ñ Distance up to 300m at MM Fiber
      300m links with OM3 MMF Cables
      82m links with OM2 MMF Cables
      33m links with OM1 MMF Cables
¡ñ 3.3V power supply
¡ñ LC duplex optical interface
¡ñ CML Differential Inputs ¡¢CML Outputs and ( LV)TTL signal detect
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Standard£º0 to +70¡æ) or (Industrial£º -40°C to +85°C)

Application
¡ñ Fiber Channel Switch Infrastructure
¡ñ Other optic links

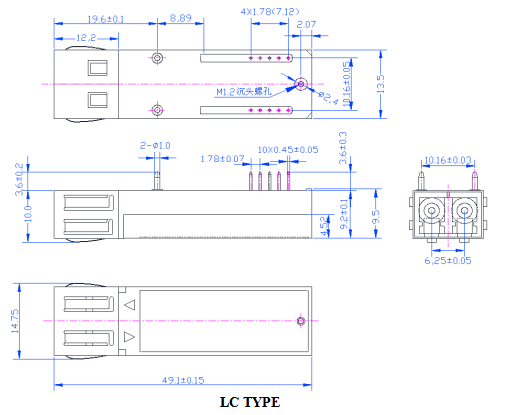

Module Outline Drawing

Order Information

Note£º
1. The suffix “M” denote MMF.
2. The suffix “-I” denote the industry level
