400G QSFP-DD XPSM8 20km Optical Transceiver Module

Description
The F-tone Networks FTQD-4H-XPSMDR4-20 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high performance modulefor multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 20km using G.652 SMF with KP-FEC. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface 400GAUI-8 uses a 76 contact edge type connector. The optical interface uses a MPO16/MTP16 APC connector . The Common Management Interface Specification (CMIS) for QSFP DD modules, This module incorporates F-tone Networks Technologies proven circuit and EML technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 8 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 53Gbps per channel
¡ñ 8x53Gbps PAM4 transmitter and PAM4 receiver
¡ñ 8 channels1310nm cooled EML
¡ñ 8 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Power consumption <11W
¡ñ Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
¡ñ Maximum link length of 20km G.652 SMF with KP-FEC
¡ñ MPO16 APC connector receptacle
¡ñ Built-in digital diagnostic functions
¡ñ Operating case temperature 0°C to +70°C
¡ñ 3.3V power supply voltage
¡ñ RoHS compliant(lead free)

Applications
¡ñ IEEE 802.3bs 200GBASE-DR4
¡ñ 2x200Gigabit Ethernet Applications

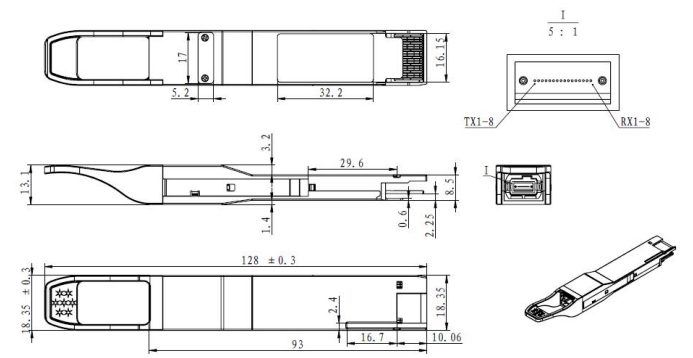

Mechanical Dimensions

Ordering information
