400G QSFP-DD PSM8 10km Optical Transceiver Module

Description
The F-tone Networks FTQD-4H-PSMDR4-10 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight datalanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 10km using G.652 SMF with KP-FEC. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. Theoptical interface uses a MPO16/MTP16 APC connector . The Common Management Interface Specification (CMIS) for QSFP DD modules, This module incorporates F-tone Networks provencircuit and EML technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 8 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 53Gbps per channel
¡ñ 8x53Gbps PAM4 transmitter and PAM4 receiver
¡ñ 8 channels1310nm uncooled EML
¡ñ 8 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Power consumption <11W
¡ñ Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
¡ñ Maximum link length of 2km G.652 SMF with KP-FEC
¡ñ MPO16 APC connector receptacle
¡ñ Built-in digital diagnostic functions
¡ñ Operating case temperature 0¡æ to +70¡æ
¡ñ 3.3V power supply voltage
¡ñ RoHS compliant(lead free)

Applications
¡ñ IEEE 802.3bs 200GBASE-DR4

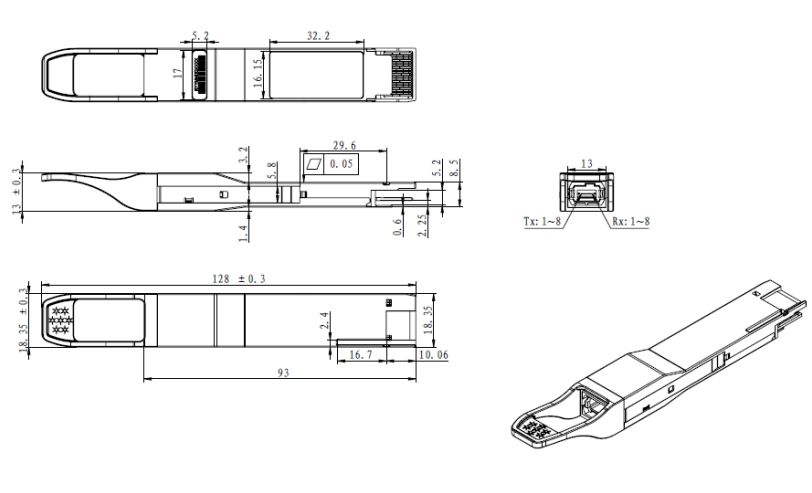

Mechanical DimensionsOrdering information

±¾²úƷΪFT-Y1ϵÁÐ£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
