32GFC850nm SFP28 100m w/o FEC Optical Transceiver (FTCS-8528G-02D)
Description
Description
The F-tone Networks FTCS-8528G-02D is a single-Channel, Pluggable, Fiber-Optic SFP28 for 28.05GbpsFiber Channel/OTU4 SFP28 SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 28.05Gbps(32GFC) up to 70 m using OM3 fiber and 100m using without KR-FEC,and 300m using with FEC. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
● Hot-pluggable SFP28 form factor
● Supports 28.05Gbps data rate
● Maximum link length of 70m on OM3 MMF and100m on OM4 MMF without FEC or 300m OM4 MMF with FEC
● 850nm VCSEL laser and PIN photo-detector
● Internal CDR on both Transmitter and Receiver channel
● Duplex LC receptacle
● Single 3.3V power supply
● Power dissipation < 1W
● Digital diagnostics functions are available via the I2C interface
● RoHS 2.0 compliant
● Commercial case temperature range: 0°C to 70°C
Applications
● 32G Fiber Channel/OTU4

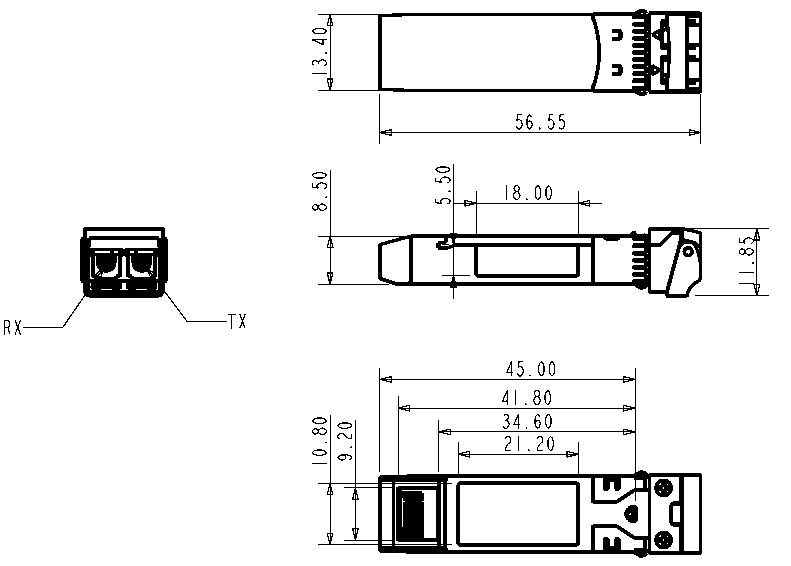

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-8528G-02D |
32GFC SFP28 SR, 28.05Gb/s, 850nm, 100m, OM4 MMF without FEC, 0℃ to 70℃ |
本产品为25G~400G高速光�？橄盗�，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
