2X10 SFF BIDI SM ¹âÄ£¿é£¨TX1550DFB/RX1310£©

2X10 SFF BIDI SM ¹âÄ£¿é£¨TX1550DFB/RX1310£©

0.0/5 rating (0 votes)

Description

2X10 SFF BIDI SM ¹âÄ£¿é£¨TX1550DFB/RX1310£©

FEATURES
¡ñ Single 3.3 Volt DC supply
¡ñ 2x10 SFF BIDI Package Outline
¡ñ SC connector
¡ñ Differential LVPECL/CML inputs
¡ñ Differential CML outputs
¡ñ Distance up to 20 km
¡ñ LVTTL Signal Detect output
¡ñ Operating case temperature: -40 ¡æto 85¡æ
¡ñ Class 1 laser product complies with EN 60825-1
¡ñ RoHs Compliance

APPLICATIONS
¡ñ SONET/SDH Equipment Interconnect
¡ñ Gigabit Ethernet 1.25 Gb/s Links

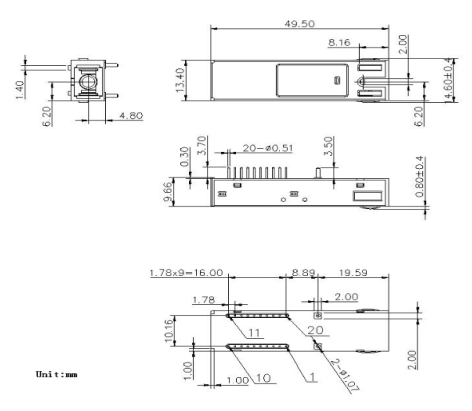

PACKAGE OUTLINEA30
Order Information

P/No.

Package

Bit Rate(Mb/s)

Dist.(km)

Wavelength(nm)

Volt.(V)

TX Power(dBm)

RX Sens(dBm)

DDM

Temp.(¡æ)

FTBF-B1312-20DI

SC

1250

20

TX1310FP/ RX1550

3.3

-8 to 0

-23

YES

-40~85

FTBF-B1512-20DI

SC

1250

20

TX1550DFB/RX1310

3.3

-8 to 0

-23

YES

-40~85













×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪFTBFϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
