25G SFP28 Electrical Passive Loopback

Product Description
The F-tone Networks SFP28 passive electrical loopback is used for testing SFP28 transceiver ports in board level test. The electrical loopback provides a cost-effective low loss method for SFP28 port testing.
The FT-33-ZSP-LBX is packaged in a standard MSA housing compatible with all SFP28 ports. Transmit data from the host is electrically routed (internal to the loopback module) to the receive data outputs and back to the host. Since the loopback module does not contain laser diodes, photodiodes, laser driver or trans impedance amplifier chips, etc., it provides an economical way to exercise SFP28 ports during R&D validation, production testing and field testing.

Features
¡ñ Customizable power consumption
¡ñ Custom memory maps available
¡ñ Supports 28Gbps total data rate
¡ñ Hot-pluggable MSA footprint
¡ñ Full SFF-8432 MSA compliant
¡ñ No reference clock required
¡ñ Case operating temperature
      Commercial: 0 ~ +70¡æ
      Extended: -10 ~ +80¡æ
      Industrial: -40 ~ +85¡æ

Applications
¡ñ SFP port/system testing
¡ñ Ethernet IEEE 802.3 (Gigabit, 10 Gigabit and 25 Gigabit Ethernet)
¡ñ SONET, SDH, GBE, Fiber Channel Support
¡ñ Board level system testing
¡ñ Power on validation
¡ñ Excellent signal integrity
¡ñ Economical and flexible 28Gbps SFP28 port testing

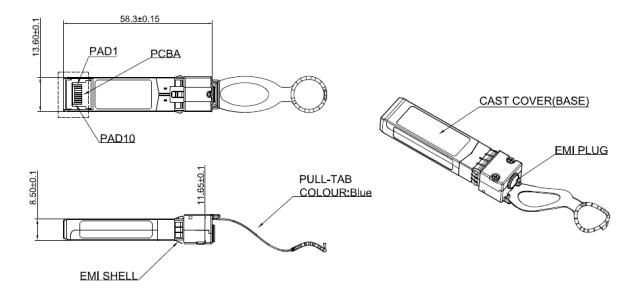

Mechanical Specifications

Order Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úƷΪSFP28ϵÁйâÄ£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
