SFP 155Mbps Transceiver Module
Description
SFP 155Mbps Transceiver Module
Product Description
F-tone Networks’s FTCS-M1303-02I-L transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 200Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).
These transceiver modules provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3, SDH/STM-1 for Telecommunication.
Product Features
● FP Laser Diode Transmitter
● Up to 52Km on 62.5/125μm MMF
● 3.3Vpower supply
● LC duplex optical interface
● (LV)PECL Differential Inputs/ Outputs and ( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● ATM 155Mbps
● SONET/SDH
● 100Mbps Ethernet Equipments
● Other Optic Link

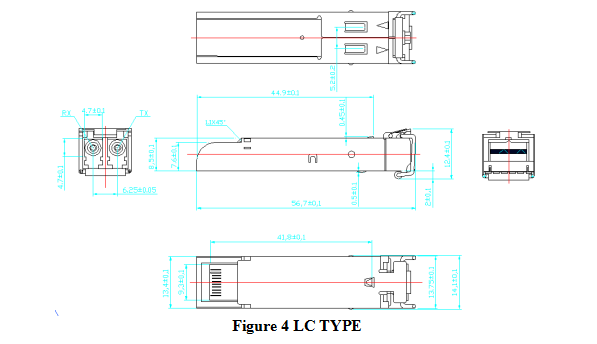

Module Outline Drawing
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTCS-M1303-02I-L |
MM |
1310(FP) |
2 |
注：本产品有全国产化型号可选
本产品为低功耗SFP系列光模块，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
