2×5 SFF 1.25Gbps Transceiver Module
Description
2×5 SFF 1.25Gbps Transceiver Module
Product Description
F-tone’s FTAF-xxx12-xxx series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 1500Mbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● VESEL/FP/DFB Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF，Up to 100 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● (LV)PECL/CML Differential Inputs /Outputs and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber Channel Switch Infrastructure
● Gigabit Ethernet Switches and Routers
● Other optic links

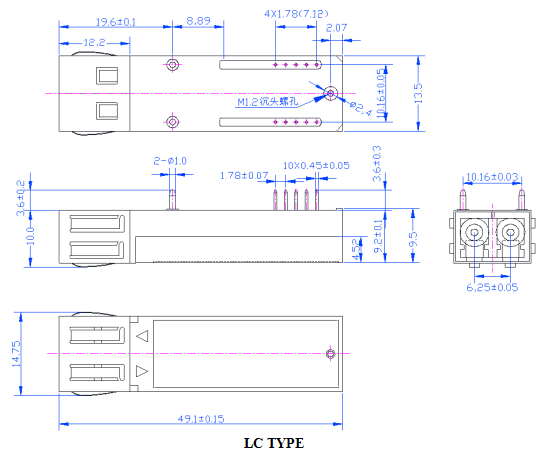

Mechanical Specifications
Ordering information
|
Type |
Fiber Type |
Length(Km) |
Temperature |
Signal TX /Signal RX/Signal Detect |
|
FTAF-8512-02 |
MM850 |
0.5KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-8512-02I |
MM850 |
0.5KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-M1312-02 |
MM1310 |
2KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-M1312-02I |
MM1310 |
2KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-10LI |
SM1310 |
10KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL(信号正常低电平) |
|
FTAF-1312-20 |
SM1310 |
20KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-20I |
SM1310 |
20KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-40 |
SM1310 |
40KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-40I |
SM1310 |
40KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-60 |
SM1310 |
40KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1312-60I |
SM1310 |
40KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-20 |
SM1550 |
20KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-20I |
SM1550 |
20KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-40 |
SM1550 |
40KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-40I |
SM1550 |
40KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-60 |
SM1550 |
60KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-60I |
SM1550 |
60KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-80 |
SM1550 |
80KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-80I |
SM1550 |
80KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-H0 |
SM1550 |
100KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-H0I |
SM1550 |
100KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-H2 |
SM1550 |
120KM |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-1512-H2I |
SM1550 |
120KM |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
