2.488Gbps 2X10 SFF SM Transceiver

Product Description
F-tone’s FTBF-xx24-xxseries of transceiver modules are the perfect solution for high-speed communication networks. FTBF-xx24-xxseries modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications. F-tone’s FTBF-xx24-xxSmall Form Factor (SFF) transceivers comply with the 2X10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). They also comply with SONET OC-48 (SDH STM-16) standards2. The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5. The modules provide a uniform factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system. F-tone’s FTBF-xx24-xxSFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
¡ñ 1310nm or 1550nm wavelength Laser Transmitter
¡ñ Up to 40 Km on 9/125μm SMF
¡ñ Single 3.3V power supply
¡ñ Standard 2X10 pin footprint (MSA Compliant)
¡ñ Operating case temperature range(Standard£º0 to+70¡æ) or (Industrial£º -40°C to +85°C))
¡ñ Duplex LC connector
¡ñ CML Signal Input / Output
¡ñ TTL Signal Detect
¡ñ Low power dissipation
¡ñ Excellent EMI and ESD protection
¡ñ Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)

Application
¡ñ ATM
¡ñ SONET/SDH
¡ñ Fast Ethernet
¡ñ Other optic link

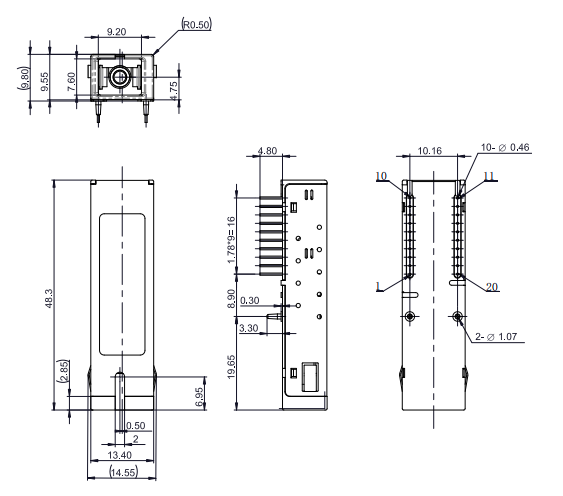

Assignment & Signal Definition

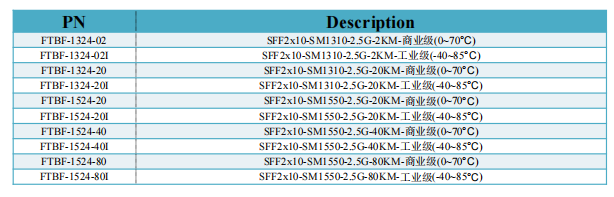

Ordering information
