1310nm 10km 双纤双向超短型光收发�？�
Description
1310nm 10km 双纤双向超短型光收发�？�
描述
FTRS-131X-xxx型双纤双向超短型光收发�？榻⑺秃徒邮詹糠址庾霸谝桓鲂〕叽缃鹗艨翘迥�，增强了�？榭沟绱抛倘拍芰� 。光发射部分接纳大功率LD，发送信号引脚（TD+和TD-）接口电平标准为CML 。
光接收部分包括PIN、前置跨阻放大器和限幅放大器，接收信号引脚（RD+和RD-）接口电平标准为CML 。接收信号检测引脚（SD）接口电平为标准LVTTL 。通过发射使能引脚（TDIS）可使�？榻虢诘缒Ｊ� 。
�？橐偶白爸贸叽缛婕嫒軸TRATOS公司的同类产品 。功效引脚，装置及外形尺寸可凭据用户要求定制，应用灵活 。
�？榫细竦木芳渡秆〖扒榭鍪匝�，包管了�？榈目煽啃院颓榭鍪视π�，具有抗振动、抗电磁滋扰、耐湿热、温度适应性强等特点，广泛适用于机载、舰载、高海拔等情况 。
�？樘寤�，重量轻，全金属结构，高度仅12mm，易于装置在空间狭小的插板或机箱内 。
特性描述
● 更紧凑的结构设计——�？楦叨冉�12mm
● 适应于高速信号完整性的表贴I/O引脚
● 全金属外壳
● 军品级温度规模，接纳抗振动设计
● 具备接收数据信号检测功效
● 仅使用+3.3 V单电源
● LC接口形式
● 引脚及装置尺寸全面兼容STRATOS产品
应用
● 种种数字光通信系统
● 千兆位以太网
● 光纤通道
● SONET/SDH
● 交换机

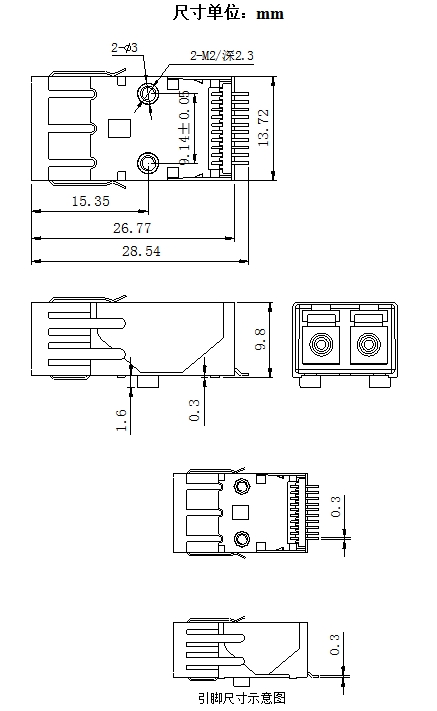

外形尺寸图
订购信息
|
Part Number |
Product Description |
|
FTRS-131X-02 |
双纤双向表贴型-LC-1310nm-(≥10km)-10.3125Gbps-商业级 |
|
FTRS-131X-02I |
双纤双向表贴型-LC-1310nm-(≥10km)-10.3125Gbps-工业级 |
|
FTRS-131X-02M |
双纤双向表贴型-LC-1310nm-(≥10km)-10.3125Gbps-军品级 |
注明： 另有多种CWDM波长可供选择 。
注：本产品有全国产化型号可选
本产品为FTRS系列，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
