1.25G Transceiver Module
Description
1.25G Transceiver Module
Product Description
F-tone Networks’s FTRC-xx12-xxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● VCSEL/FP/DFB Laser Diode Transmitter
● Up to 0.55Km on 62.5/125μm MMF，Up to 100 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and CML Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber Channel Switch Infrastructure
● Gigabit Ethernet Switches and Routers
● Other optic link

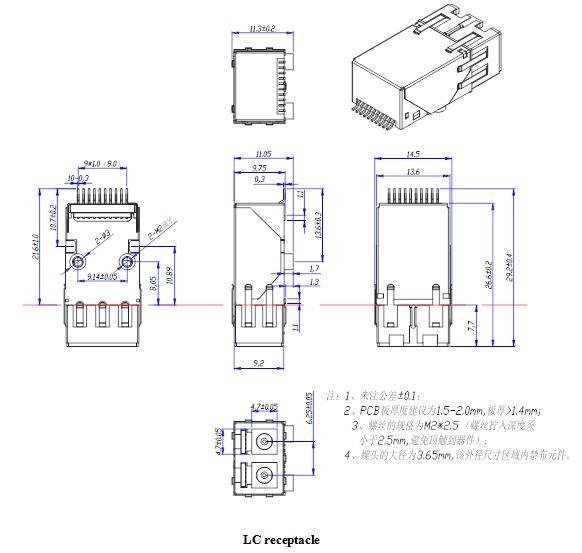

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTRC-8512-02I |
MM |
850(VCSEL) |
0.5 |
|
FTRC-M1312-02I |
MM |
1310(FP) |
0.55 |
|
FTRC-1312-10I |
SM |
1310(FP) |
10 |
|
FTRC-1312-20I |
SM |
1310(FP) |
20 |
|
FTRC-1312-40I |
SM |
1310(DFB) |
40 |
|
FTRC-1512-20I |
SM |
1550(DFB) |
20 |
|
FTRC-1512-40I |
SM |
1550(DFB) |
40 |
|
FTRC-1512-80I |
SM |
1550(DFB) |
80 |
|
FTRC-1512-H0I |
SM |
1550(DFB) |
100 |
注：本产品有全国产化型号可选
本产品为FTRC系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
