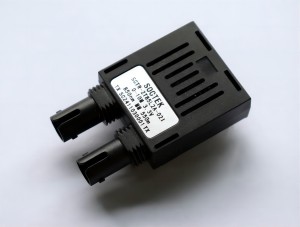

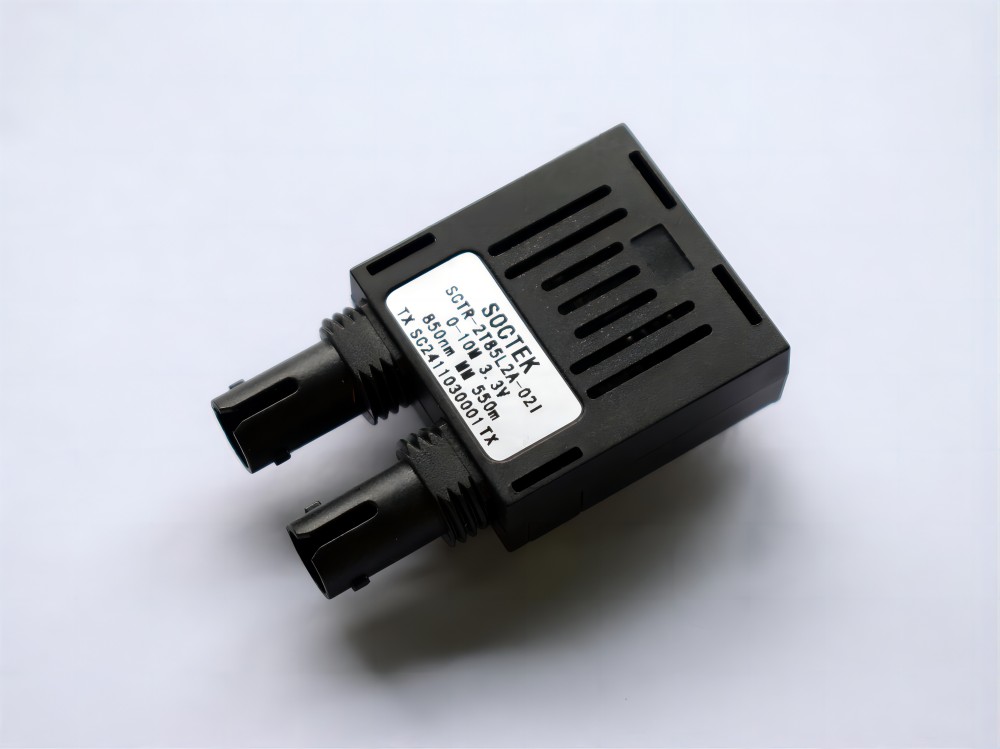

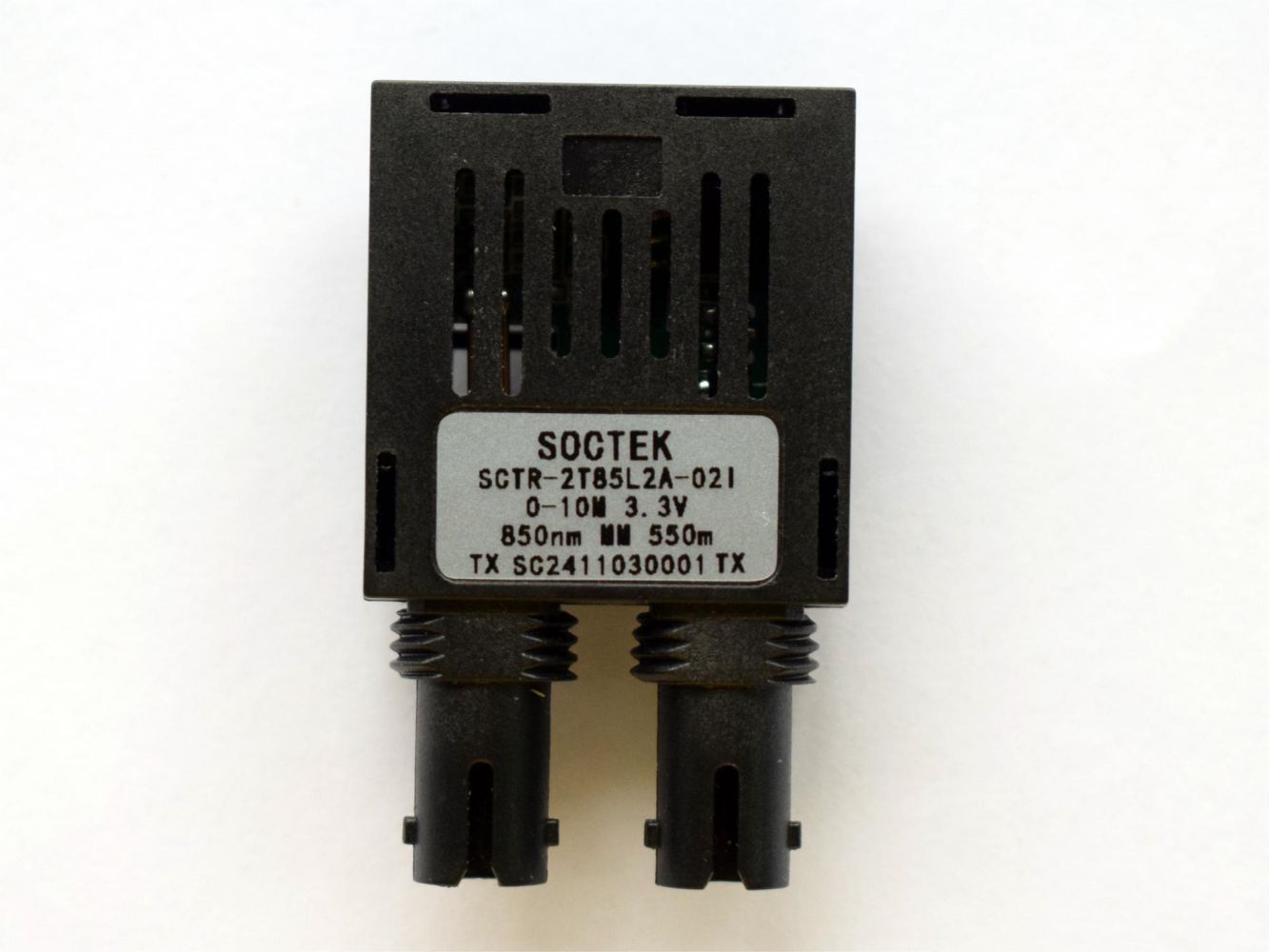

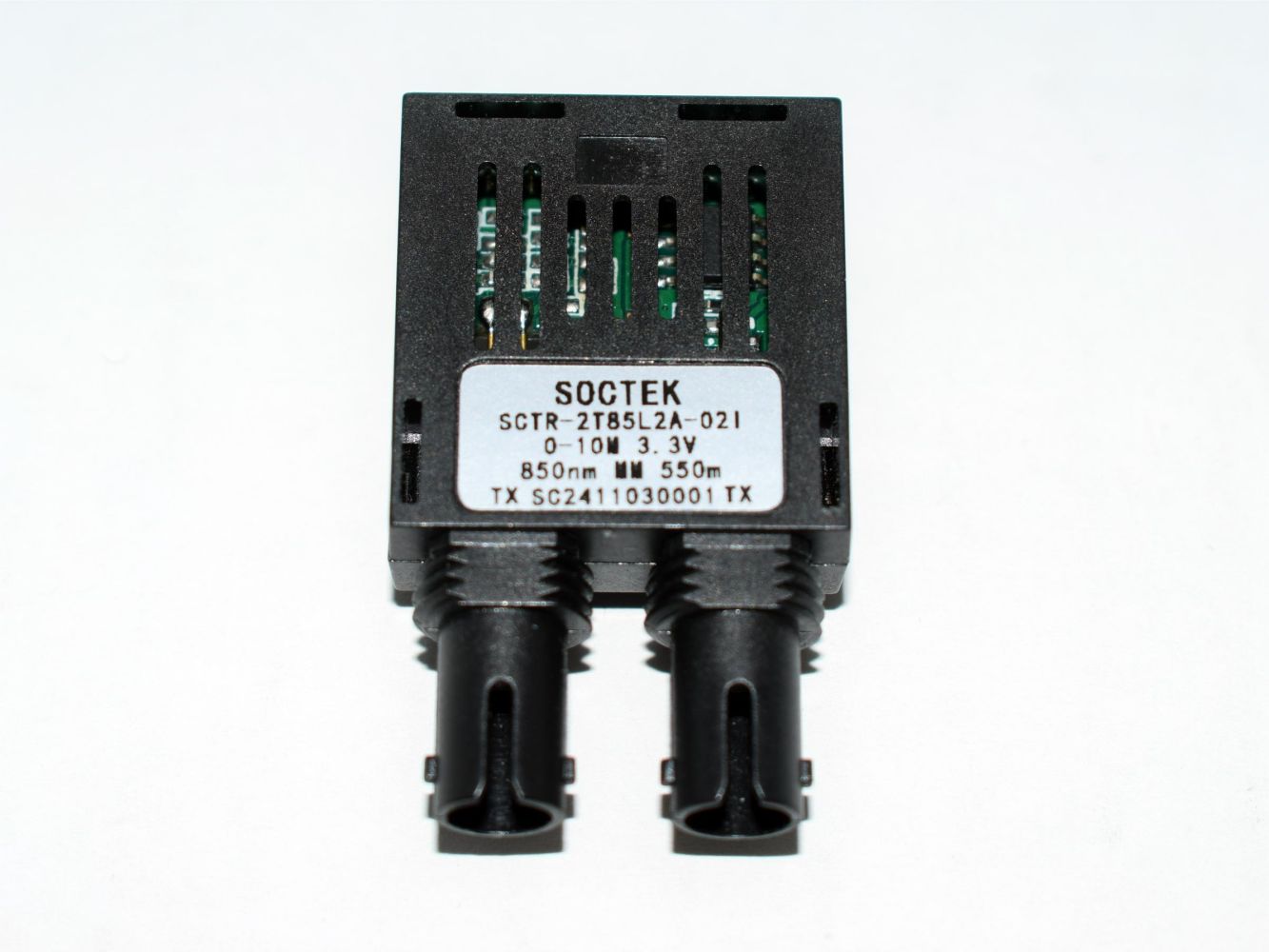

10M 1X9 Dual Transmitter Module
Description
10M 1X9 Dual Transmitter Module
Product Description
F-tone Networks’s FTTR-2T85L2A-02I Dual Transmitter module is the perfect solution for low -speed communication networks.The product is dual-channel optical transmitter module. Supportes data rates up to 10Mbps. The module is compliant with the 1×9 footprint.The transmitter module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.
Product Features
● VCSEL Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF
● 3.3Vpower supply
● SC/ST/FC duplex optical interface
● TTL Input
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Industrial： -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

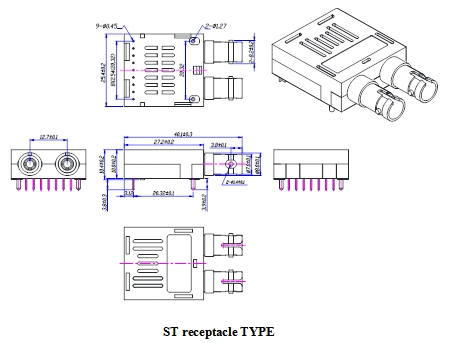

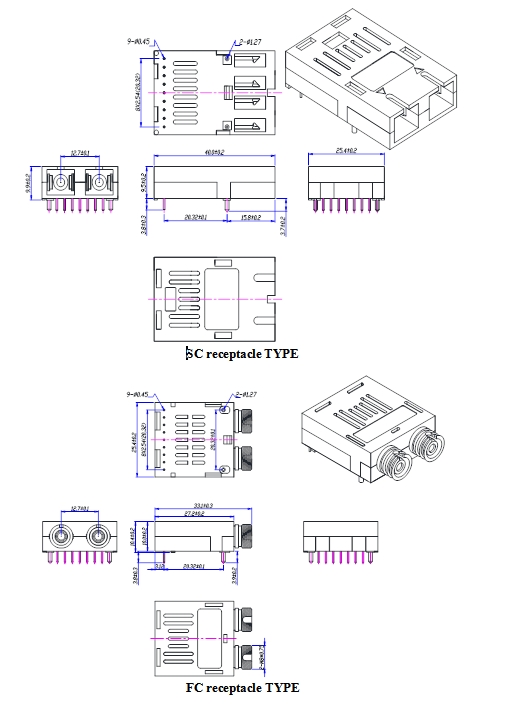

Mechanical Dimensions

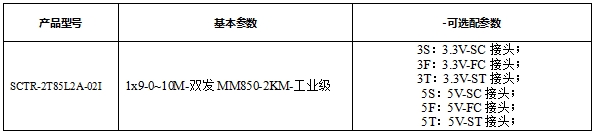

Order Information
注：本产品有全国产化型号可选
本产品为光� ？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
