0~35Mbps 1X9 LVTTL Multimode Transceiver (2Km)
Description
0~35Mbps 1X9 LVTTL Multimode Transceiver (2Km)
FEATURES
● 850nm VCSEL Transmitter
● DC~35M Data Rate
● LVTTL Inputs & Outputs
● Single 3.3V Power Supply
● Duplex ST/SC Connector
● Industry Standard 1×9 Package
● Operating case temperature:
FTTR-85LD-02 ： 0 ℃to 70℃
FTTR-85LD-02I ： -40 ℃to 85℃
● RoHs Compliance
APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

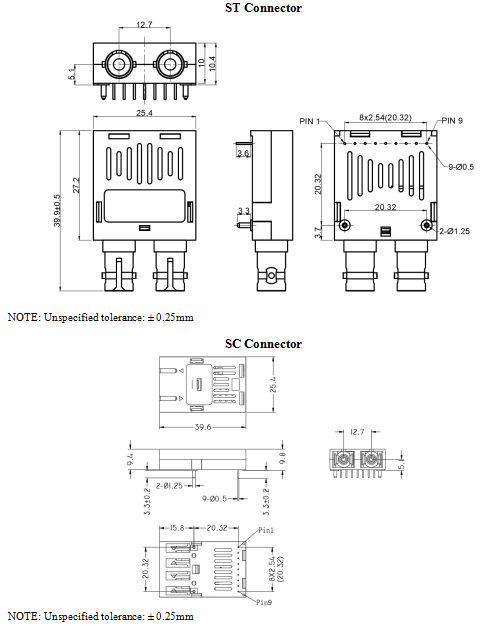

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RX Sens(dBm) |
Temp.(℃) |
|
FTTR-85LD-02 |
ST/SC |
0~35M |
2 |
850 |
3.3 |
-8 to -3 |
-18 |
0 ~70 |
|
FTTR-85LD-02I |
ST/SC |
0~35M |
2 |
850 |
3.3 |
-8 to -3 |
-18 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为光� ？�1x9系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
