FEATURES
¡ñ Surface mount I/O pins for high speed signal integrity
¡ñ All metal body, solder or screw mount options
¡ñ Industrial Temp range, vibration tolerant design
¡ñ Up to 10km links
¡ñ 2-Fiber MiniSFF LC Transceiver
¡ñ 1271¡«1611nm CWDM Cooled DML transmitter
¡ñ Multimode 850nm Receiver
¡ñ Single 3.3V Power Supply
¡ñ Operating case temperature:
FT-95-RS-CxxR851X-02D : 0¡æ~+70¡æ
FT-95-RS-CxxR851X-02DI : -40¡æ~+85¡æ
APPLICATIONS
¡ñ CWDM optic fiber transmission system
CWDM optic fiber transmission system
AbsoluteMaximumRatings |
|||||
Parameter |
Symbol |
Min. |
Max. |
Units |
Note |
StorageTemperature |
Ts |
-40 |
85 |
¡æ |
- |
PowerSupplyVoltage |
Vcc |
-0.5 |
4 |
V |
- |
SolderingTemperature |
- |
- |
260 |
¡æ |
10 seconds on leads only |
InputVoltage |
Vin |
GND |
Vcc |
V |
- |
RecommendedOperatingConditions |
|||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
PowerSupplyVoltage |
Vcc |
3.1 |
3.3 |
3.5 |
V |
Operating Temperature |
Industrial |
-40 |
- |
85 |
¡æ |
Standard |
0 |
- |
70 |
¡æ |
|
DataRate |
- |
- |
10 |
- |
Gbps |
PowerSupplyCurrent |
Icc |
- |
- |
450 |
mA |
TransmitterSpecifications(3.1V<Vcc<3.5V) |
|||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Optical |
|||||
Center Wavelength |
λC |
λ-6.5 |
|
λ+6.5 |
nm |
spectral width |
Δλ |
|
|
1 |
nm |
Average Optical Output Power |
Po |
-3 |
- |
+2 |
dBm |
Laser Off Power |
Poff |
- |
- |
-30 |
dBm |
ExtinctionRatio |
ER |
3.5 |
- |
- |
dB |
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
Electrical |
|||||
DifferentialInputVoltage |
VIH-VIL |
0.3 |
- |
2.2 |
V |
ReceiverSpecifications(-3.1V<Vcc<3.5V) |
||||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
NOTE |
Optical |
|
|||||
Receiver Sensitivity |
Sen |
- |
- |
-10 |
dBm |
1 |
MaximumInputPower(Saturation) |
PMAX |
0 |
- |
- |
dBm |
|
SignalDetect--Asserted |
Pa |
- |
- |
-11 |
dBm |
|
SignalDetect--Deasserted |
Pd |
-30 |
- |
- |
dBm |
|
SignalDetect--Hysteresis |
Phys |
0.5 |
- |
- |
dB |
|
WavelengthofOperation |
λ |
700 |
|
900 |
nm |
|
Electrical |
|
|||||
DifferentialOutputVoltage |
VOH–VOL |
0.4 |
- |
2 |
V |
|
Note1£ºMeasured with average power; BER < 10-12 and PRBS 231 -1.

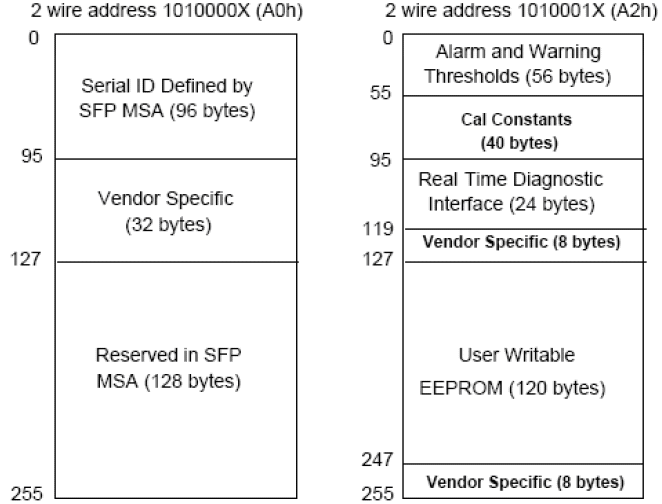

Digital Diagnostic Memory Map

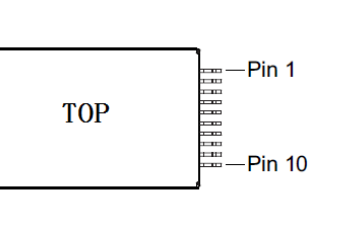

Pins Assignment
Function definition
PIN No. |
Name |
Function |
Voltage Level |
1 |
TD+ |
Data IN+ |
CML |
2 |
VEETX |
Transmitter GND |
N/A |
3 |
TD- |
Data IN- |
CML |
4 |
VCCTX |
Transmitter VCC |
N/A |
5 |
SDA |
The data line of two wire serial interface |
OpenDrain |
6 |
SCL |
The clock line of two wire serial interface |
Open Drain |
7 |
RD+ |
Data OUT+ |
CML |
8 |
VCCRX |
Receiver VCC |
N/A |
9 |
RD- |
Data OUT- |
CML |
10 |
VEERX |
Receiver GND |
N/A |

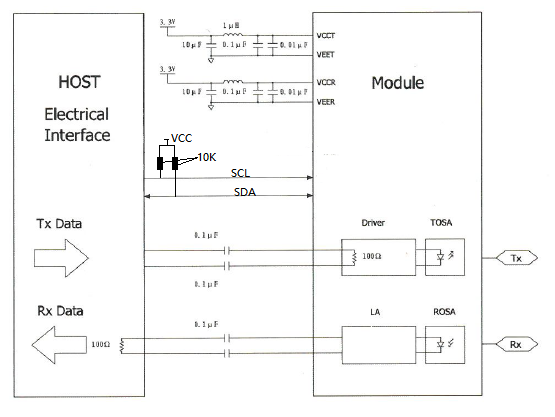

Recommended Circuit
Notes:
1) L1 and L2 = MuRata BLM21A601S or equivalent (600Ω at 100MGz or better).
2) Route the differential pairs (TX +/- and RX +/-) together using 100Ω impedance matched traces.
3) Use separate power supply filtering for VCCT and VCCR, as shown.

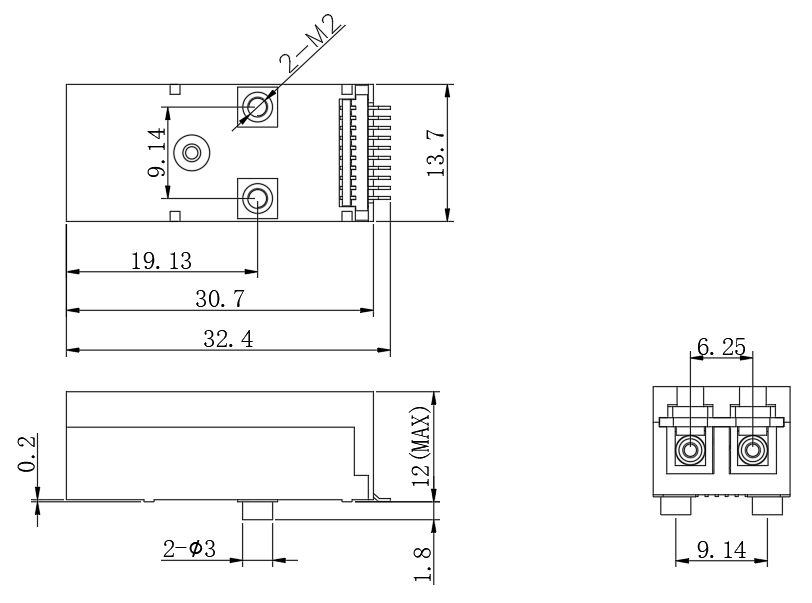

Outline Specification
NOTE: Unspecified tolerance:± 0.25mm

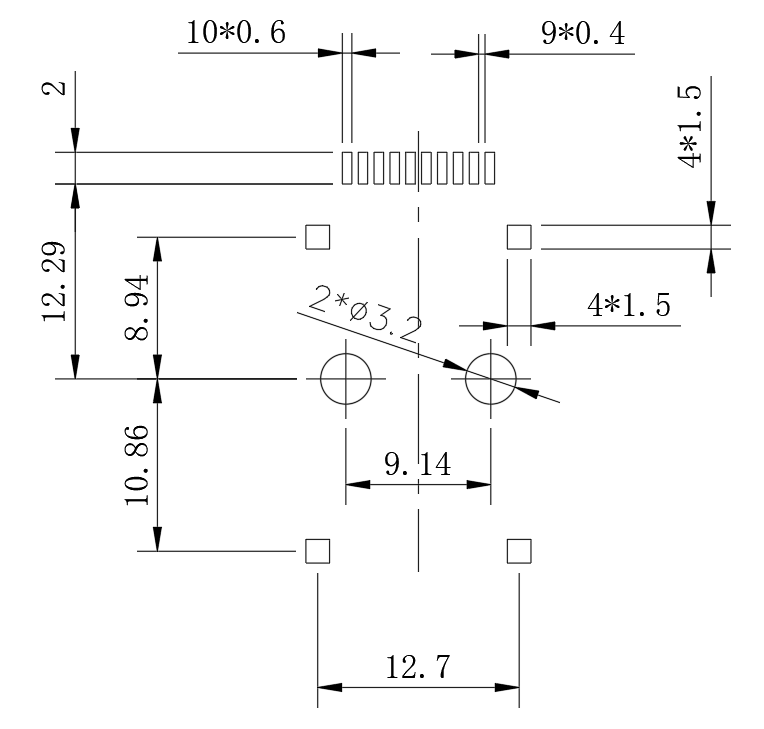

Recommended PCB Layout
NOTE: Unspecified tolerance:± 0.25mm

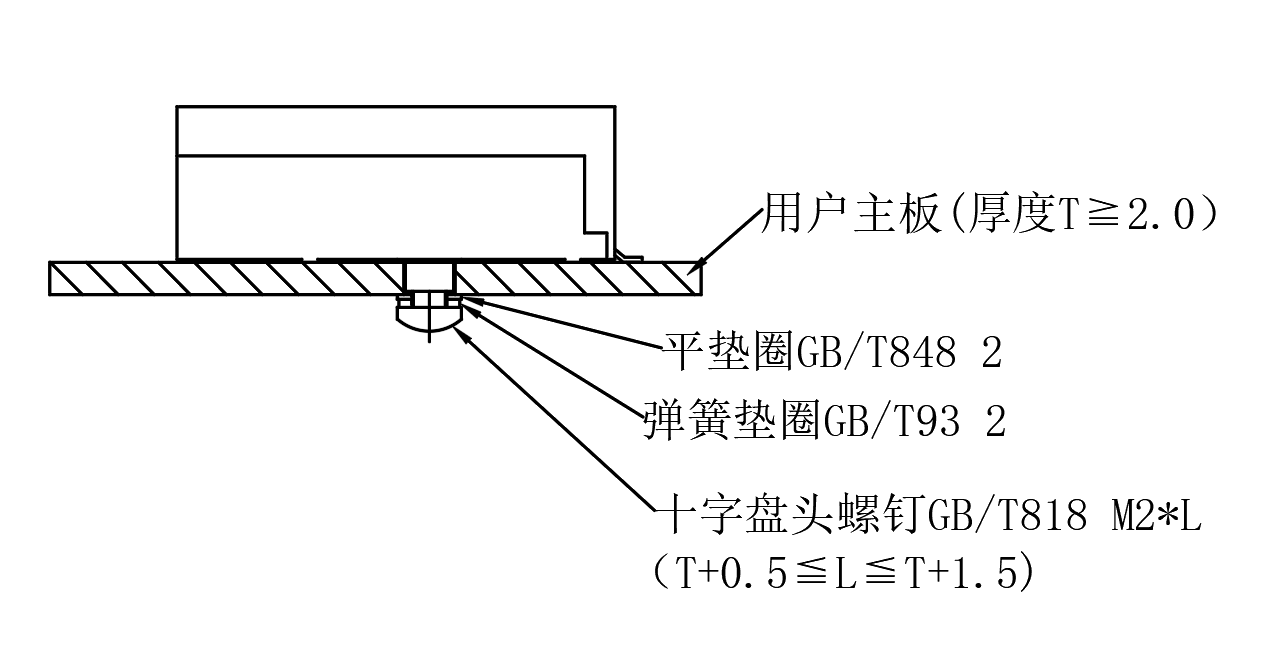

Installation Diagram
Ordering Information
FT-95-RS-CxxR851X-02D XX: 1271¡«1611nm CWDM Wavelength
P/No. |
Temp. (¡æ) |
Wavelength (nm) |
Dist. (km) |
TX Power (dBm) |
RX Sens (dBm) @850nm |
Package |
Bit Rate (Gb/s) |
Volt. (V) |
FT-95-RS-C27R851X-02D |
0~70 |
1271 |
10 |
-3 to +2 |
-10 |
LC |
10 |
3.3 |
FT-95-RS-C29R851X-02D |
0~70 |
1291 |
||||||
FT-95-RS-C31R851X-02D |
0~70 |
1311 |
||||||
FT-95-RS-C33R851X-02D |
0~70 |
1331 |
||||||
FT-95-RS-C35R851X-02D |
0~70 |
1351 |
||||||
FT-95-RS-C37R851X-02D |
0~70 |
1371 |
||||||
FT-95-RS-C39R851X-02D |
0~70 |
1391 |
||||||
FT-95-RS-C41R851X-02D |
0~70 |
1411 |
||||||
FT-95-RS-C43R851X-02D |
0~70 |
1431 |
||||||
FT-95-RS-C45R851X-02D |
0~70 |
1451 |
||||||
FT-95-RS-C47R851X-02D |
0~70 |
1471 |
||||||
FT-95-RS-C49R851X-02D |
0~70 |
1491 |
||||||
FT-95-RS-C51R851X-02D |
0~70 |
1511 |
||||||
FT-95-RS-C53R851X-02D |
0~70 |
1531 |
||||||
FT-95-RS-C55R851X-02D |
0~70 |
1551 |
||||||
FT-95-RS-C57R851X-02D |
0~70 |
1571 |
||||||
FT-95-RS-C59R851X-02D |
0~70 |
1591 |
||||||
FT-95-RS-C61R851X-02D |
0~70 |
1611 |
FT-95-RS-CxxR851X-02DI XX: 1271¡«1611nm CWDM Wavelength
P/No. |
Temp. (¡æ) |
Wavelength (nm) |
Dist. (km) |
TX Power (dBm) |
RX Sens (dBm) @850nm |
Package |
Bit Rate (Gb/s) |
Volt. (V) |
FT-95-RS-C27R851X-02DI |
-40~85 |
1271 |
10 |
-3 to +2 |
-10 |
LC |
10 |
3.3 |
FT-95-RS-C29R851X-02DI |
-40~85 |
1291 |
||||||
FT-95-RS-C31R851X-02DI |
-40~85 |
1311 |
||||||
FT-95-RS-C33R851X-02DI |
-40~85 |
1331 |
||||||
FT-95-RS-C35R851X-02DI |
-40~85 |
1351 |
||||||
FT-95-RS-C37R851X-02DI |
-40~85 |
1371 |
||||||
FT-95-RS-C39R851X-02DI |
-40~85 |
1391 |
||||||
FT-95-RS-C41R851X-02DI |
-40~85 |
1411 |
||||||
FT-95-RS-C43R851X-02DI |
-40~85 |
1431 |
||||||
FT-95-RS-C45R851X-02DI |
-40~85 |
1451 |
||||||
FT-95-RS-C47R851X-02DI |
-40~85 |
1471 |
||||||
FT-95-RS-C49R851X-02DI |
-40~85 |
1491 |
||||||
FT-95-RS-C51R851X-02DI |
-40~85 |
1511 |
||||||
FT-95-RS-C53R851X-02DI |
-40~85 |
1531 |
||||||
FT-95-RS-C55R851X-02DI |
-40~85 |
1551 |
||||||
FT-95-RS-C57R851X-02DI |
-40~85 |
1571 |
||||||
FT-95-RS-C59R851X-02DI |
-40~85 |
1591 |
||||||
FT-95-RS-C61R851X-02DI |
-40~85 |
1611 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
