8CH Mini DWDM Spec
Description
Product PN:
产品描述
性能规格
|
参数/Parameters |
Specifications |
Unit |
|
|
事情波长/Operating Wavelength |
1520-1570 |
nm |
|
|
通道/Channel |
8 |
nm |
|
|
通道间隔/Channel Spaceing |
100/200Ghz |
nm |
|
|
带宽(@-0.5dB)/Channel Passband(@-0.5dB bandwidth) |
≥0.22（100G） |
nm |
|
|
插入损耗1/Insertion Loss1 |
≤2.0 |
dB |
|
|
隔离度/Isolation |
相邻/Adjacent |
≥30 |
dB |
|
非相邻/Non-adjacent |
≥40 |
dB |
|
|
温度相关损耗/Insertion Loss Temperature Sensitivity |
≤0.5 |
dB |
|
|
温度偏移/Wavelength Temperature Shifting |
≤0.002 |
nm/℃ |
|
|
偏振相关损耗/Polarization Dependent Loss |
≤0.25 |
dB |
|
|
偏振模色散/Polarization Mode Dispersion |
≤0.1 |
ps |
|
|
偏向性/Directivity |
≥45 |
dB |
|
|
回波损耗/Return Loss |
≥45 |
dB |
|
|
最大光功率/Maximum Power Handing |
300 |
mW |
|
|
事情温度/Operating Temperature |
-5~+70 |
℃ |
|
|
贮存温度/Storage Temperature |
-40~+85 |
℃ |
|
|
光纤长度/Fiber Length |
1M |
M |
|
|
光纤类型/Fiber Type |
Corning SMF-28 Ultra Fibe |
|
|
|
连接头/Connector |
/ |
|
|
|
封装尺寸/Package size |
30×18×6.5 |
mm |
|
*备注/ Notes: 1. 所有插入损耗值都包括连接头加法兰的损耗值

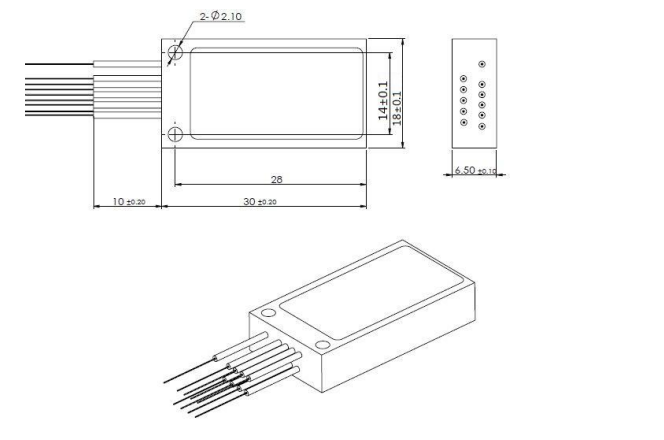

机械尺寸图/Mechanical Dimensions：
订购信息：
|
FT-13 |
MDWDM |
X |
XX |
XX |
X |
X |
X |
XX |
|
|
|
Channel Spaceing |
Number of Channel |
1st Channel |
Fiber Type |
Fiber Length |
Dimension |
In/Out Connector |
|
1=100Ghz 2=200Ghz |
02=2 Channel 04=4 Channel 05=5 Channel 06=6 Channel 08=8 Channel SS=special |
21=Ch21 …… 34= Ch34 …… 60= Ch60 |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m S=Specify |
1= 30*18*6.5mm X= Others |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
