10.3125Gbps Dual Channel Optical Receiver Module
Description
10.3125Gbps Dual Channel Optical Receiver Module
FEATURES
● Support rates up to 10.3125Gb/s
● Hot-Pluggable SFP+ Footprint LC Optical receiver
● APD photo-detector
● Single +3.3 V Power Supply
● ROHS Compliant
● Operating Temperature:
FTCS-2R1X-80D : 0℃~+70℃
FTCS-2R1X-80DI : -40℃~+85℃
APPLICATIONS
● Fiber Channel

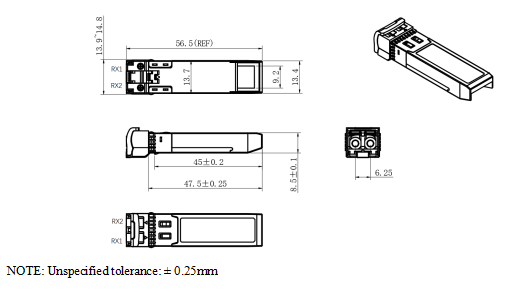

Outline Specification
Ordering Information
|
P/No. |
Package
|
Bit Rate (Gb/s) |
Volt. (V) |
RX1 Sens (dBm) |
RX2 Sens (dBm) |
Temp. (℃) |
DDM |
|
FTCS-2R1X-80D |
LC |
10.3125 |
3.3 |
-23 |
-23 |
0~70 |
YES |
|
FTCS-2R1X-80DI |
LC |
10.3125 |
3.3 |
-23 |
-23 |
-40~85 |
YES |
注：本产品有全国产化型号可选
本产品为SFP+系列光�？�，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
