10G PIN ROSA

10G PIN ROSA

0.0/5 rating (0 votes)

Description

10G PIN ROSA

Features
● Operating wavelength range:1260~1620nm
● High performance InGaAs PIN Photodiode
● with Transimpedance Amplifier(TIA)
● High sensitivity
● Coaxial LC package
● RoHS compliant

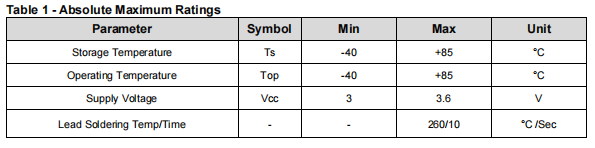

Absolute Maximum Ratings

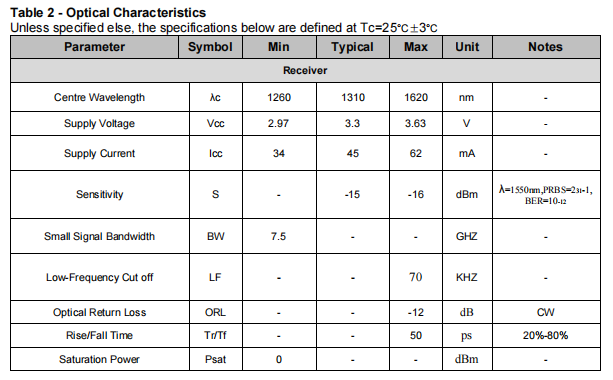

3Optical Characteristics

3

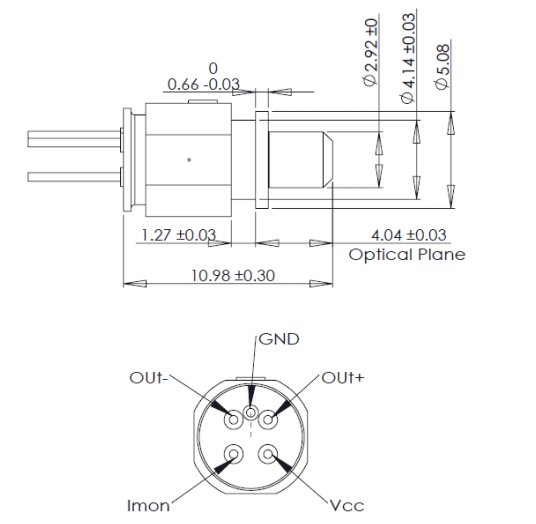

ROSA Dimension and Pin Assignment

3













注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
