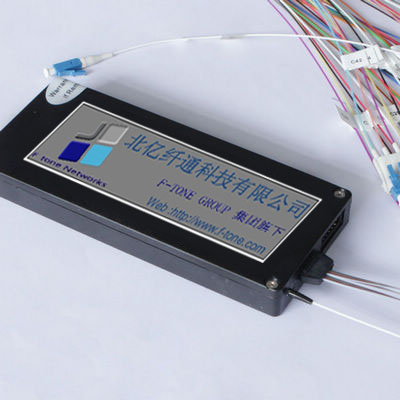

Arrayed Waveguide Grating,100GHz,Narrowband
Description
Arrayed Waveguide Grating,100GHz,Narrowband
F-tone 100 GHz, narrowband arrayed waveguide gratings (AWGs) provide a price-competitive, small-form-factor alternative to standard thin film-based dense wavelength division multiplexing (DWDM).
F-tone AWGs are a product of advanced PLC fabrication capabilities, and are offered in both mux and demux configurations. The low cost and high performance make them the ideal solution for metro and long-haul DWDM applications.
F-tone AWGs can incorporate microcontroller-based internal temperature control (ITC) circuitry to allow stable alignment with the ITU grid. The optional ITC eliminates the need for external temperature control, and does not impact package dimensions.
Key Features
- Very low insertion loss
- Wide channel bandwidth
- Low polarization dependent loss
- Low chromatic dispersion
- High adjacent channel isolation
- Low power consumption
- Compact size
- Integrated temperature controller (optional)
Applications
- Metro and long haul mux/demux
- OADM network nodes
- Original equipment manufacturer (OEM) applications
Compliance
- Telcordia GR-1221 qualified
