波分复用器
阵列波导光栅
Description
阵列波导光栅

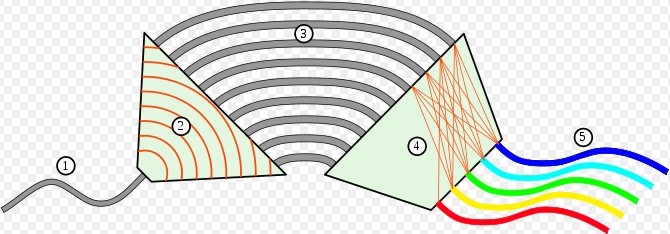

原理历程
|
Parameter |
Unit |
Specifications |
||
|
ITU Band |
GHz |
±12.5 |
||
|
Channel Spacing |
GHz |
100 |
||
|
Number of channels |
16,32,40,48 or customize |
|||
|
Wavelength accuracy |
Max |
nm |
0.05 |
|
|
Insertion Loss |
Max |
dB |
6.0 |
|
|
-1dB passband |
Min |
nm |
0.3 |
|
|
-3dB passband |
Min |
nm |
0.5 |
|
|
Isolation |
Adjacent Channel |
Min |
dB |
25 |
|
Non-adjacent Channel |
Min |
dB |
30 |
|
|
Total Crosstalk |
Min |
dB |
23 |
|
|
Ripple in Passband |
Max |
dB |
0.75 |
|
|
Polarization Dependent Loss |
Max |
dB |
0.5 |
|
|
Uniformity |
Max |
dB |
1.5 |
|
|
Directivity |
Min |
dB |
50 |
|
|
Return Loss |
Min |
dB |
45 |
|
|
Polarization Mode Dispersion |
Max |
ps |
0.5 |
|
|
Power Handling |
Max |
mW |
300 |
|
|
Fiber Type |
Corning SMF-28 / SMF-28e or customize |
|||
|
Operating Temperature |
°C |
5~70 |
||
|
Storage Temperature |
°C |
-40~85 |
||
|
Package Dimension |
mm |
(L)120×(W)70×(H)12.7 |
||
|
19’’ Rack mount Package |
mm |
1U, (L)230×(W)440×(H)44 |
||
Notes：Specifications without fiber connectors
