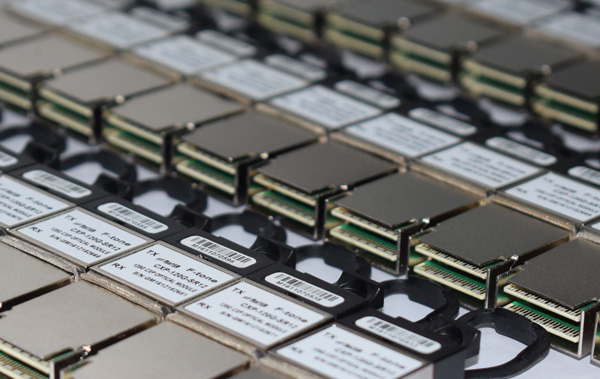

100Gbps 10channel CXP Optical Transceiver
Specifications
- ²úÆ·ÐͺÅ: CXP-150XX
- ¼æÈÝÆ·ÅÆ: ȫϵÁÐ
- ·â×°ÀàÐÍ: CXP
- ´«ÊäËÙÂÊ: 100G
- ´«Êä¾àÀë: Avago VCSEL Array Transmitter/PIN Array Receiver
- ·¢É䲨³¤: Avago VCSEL Array Transmitter
- ½ÓÊÕ²¨³¤: Avago PIN Array Receiver
- ÊÂÇéζÈ: ÉÌÒµ¼¶0¡æ¡«+70¡æ/¹¤Òµ¼¶-40¡æ¡«+85¡æ ¿ÉÑ¡
- Êý×ÖÕï¶Ï: ´øDDM
- ½ÓÊÕÁéÃô¶È: 600m
- ½ÓÊÕÁéÃô¶È: 600m
Description
- View Data Sheet (PDF)
Lifecycle status:
Active
Features [-]
- Compliant to the 100GBASE-SR10 and CPPI Specifications per IEEE 802.3ba-2010 and supporting InfiniBand QDR/DDR/SDR applications
- Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
- Multi-rate Capability from 1 Gbps to 10.5 Gbps
- High Channel Capacity: >100 Gbps per Module
- Operates at 10.3125 Gbps per Channel with 64b/66b Encoded Data for 100GbE application and at 10 Gbps with 8b/10b Encoded Data for IB-QDR Application
- Hot Pluggable for Easy System Installation
- Link Distance up to 100 m using OM3 Fiber and 150 m using OM4 Fiber
- 0 to 70 ¡ãC Case Temperature Operating Range
- Low Power Dissipation: < 3 W
- Proven High Reliability 850nm Technology: F-tone VCSEL Array Transmitter and F-tone PIN Array Receiver
- Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
- Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
- Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
- Status per Channel: Tx Fault, Electrical (Transmitter) and Optical (Receiver) LOS, and Alarm Flags
- Programmable Equalization and De-Emphasis Settings for System Performance Optimization
- Standard 24 Lane Optical Fiber with MTP? (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
Applications [-]
- 100GbE and IB-QDR / IB-DDR / IB-SDR Interconnects
- Data Aggregation, Backplane and Proprietary Protocol and High Density Applications
- Datacom/Telecom Switch and Router Connections
- PCIe Gen3 Interconnects
Documents [-]
Data Sheets & Technical Specifications
- Data Sheet - CXP-100G-150XX, 100 Gigabit Ethernet (100GBASE-SR10) Transceiver CXP Pluggable, Parallel Fiber Optics Module (1071 KB,PDF)
