10.3Gb/s SFP+ Transceiver

F-tone Networks's FTCP-131X-10D Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431,SFF-8432 and support SONET OC-192 /SDH STM-64 .It is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472

Product Features
¡ñ Commercial(0~70¡æ)
¡ñ Industrial(-40~85¡æ) Yes
¡ñ Duplex LC connector
¡ñ Hot-pluggable SFP footprint
¡ñ Uncooled 1310nm DFB laser
¡ñ RoHS compliant and Lead Free
¡ñ Distance up to 10km on 9/125um SMF
¡ñ Metal enclosure for lower EMI
¡ñ Built-in dual CDR
¡ñ Power dissipation <1.0W (0~70¡æ)<1.5W(-40~85¡æ)
¡ñ Commercial and industrial operating temperature optional
¡ñ SFP MSA SFF-8472 SFF-8431 SFF-8432 Compliant

Applications
¡ñ 10GBASE-LR/LW
¡ñ 10G Fibre Channel
¡ñ SONET OC-192 /SDH STM-6

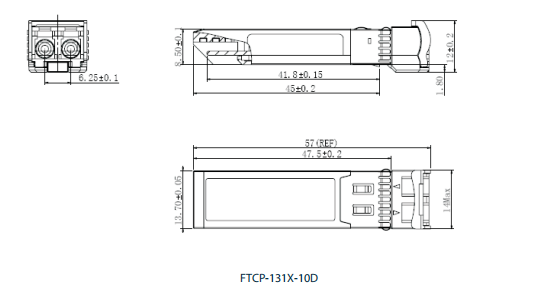

Mechanical Specifications
F-tone Networks's Small Form Factor Pluggable (SFP+) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA) , dimensions are in mm.

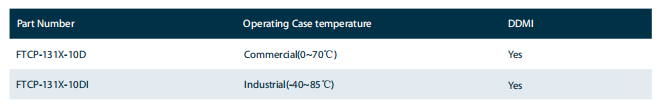

Product Selection

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪSFP+ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
