1×9 155M 1310nm 40km Transceiver Module

Product Description
F-tone Networks’s FTTR-1303-40 series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 200Mbps. The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3, SDH/STM- 1 forTelecommunication.
F-tone Networks’s FTTR-1303-40 series modules have been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
¡ñ FP Laser Diode Transmitter
¡ñ Up to 40 Km on 9/125μm SMF
¡ñ 3.3V power supply
¡ñ SC/ST/FC duplex optical interface
¡ñ (LV)PECL/CML Differential Inputs and Outputs and (LV)PECL or( LV)TTL signal detect
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range:(Industrial£º -40°C to +85°C)

Application
¡ñ ATM 155Mbps
¡ñ SONET/SDH
¡ñ 100Mbps Ethernet
¡ñ Digital Video system
¡ñ Other optic link

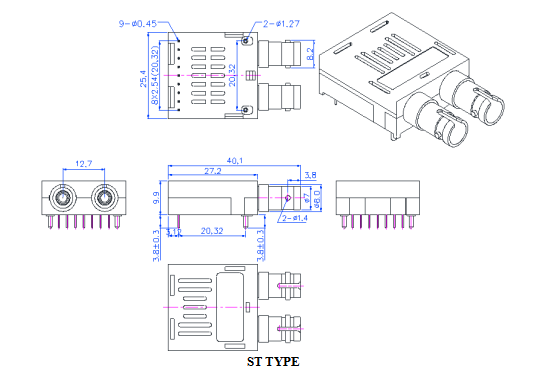

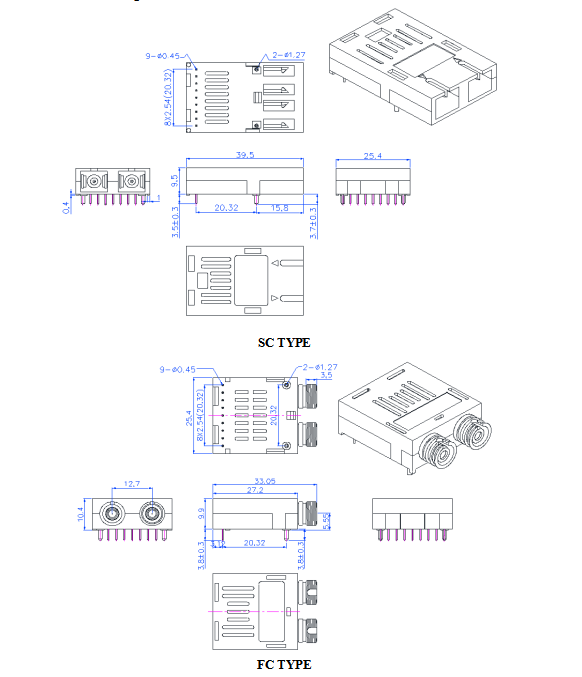

Module Outline Drawing (Units in mm)
Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÄúÁªÏµ´ó±¦ÓéÀÖ:+86-028-85255257¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
