1.5GHz Pluggable XFP-RF Optical Transmitter

Features
¡ñ Low power consumption
¡ñ XFP form factor
¡ñ DOCSIS3.1 compatible
¡ñ SCTE 195 2013 compatible
¡ñ Double Optical Isolator
¡ñ LC/APC optical connection
¡ñ Fiber link up to 60km
¡ñ Excellent EMI/EMC design
¡ñ Automatic optical power control
¡ñ Operating frequency from 50MHz to 1.5GHz

Applications
¡ñ Antenna remoting
¡ñ Wireless signal transport
¡ñ All-Digital QAM network
¡ñ Data and video distribution
¡ñ Distributed antenna system

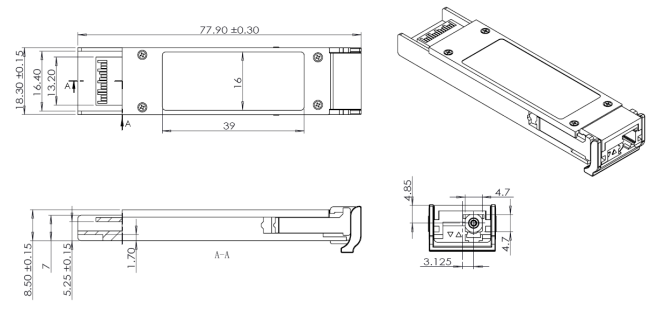

Mechanical (unit: mm)

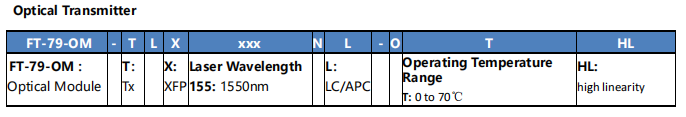

Ordering Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪFT-79ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
