40GHz  Analog Photodetector DS

Features
¡ñ Small size package
¡ñ High responsivity: typical 0.75 mA/mW@ 1550nm
¡ñ Wide operating analog frequency up to 40GHz
¡ñ Wide wavelength range from 1100nm to 1620nm
¡ñ Matched to 50Ω
¡ñ K type RF connector

Applications
¡ñ Antenna remoting
¡ñ Satellite Communications
¡ñ Wireless signal transport
¡ñ Distributed antenna system
¡ñ High speed test and measurement
¡ñ Video Signal Distribution in HFC and FTTx Nodes

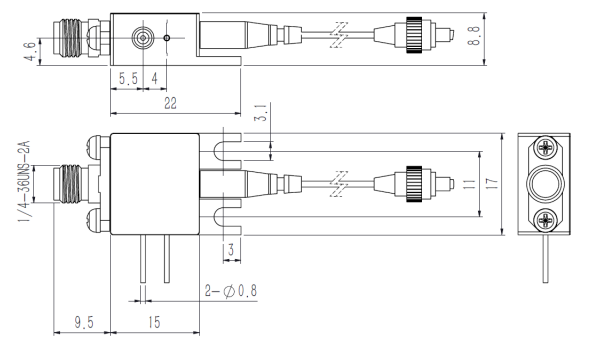

Mechanical (unit: mm)

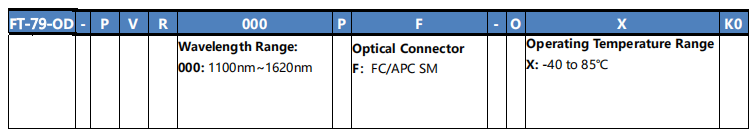

Ordering Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

±¾²úƷΪFT-79ϵÁÐ
£¬½öչʾ²¿·Ö²ÎÊý
£¬ÈçÓÐÐèÒª
£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
