其它产品
紫外LED
Description
简单介绍：
此系列紫外LED和深紫外LED发光管（UV,DEEPUV），波长240nm,245nm, 250nm,255nm,260nm, 265nm, 270nm, 275nm, 280nm, 285nm, 290nm, 300nm, 305nm, 310nm, 315nm, 320nm, 325nm,330nm, 335nm, 340nm,345nm, 350nm,355nm.所有LED均有配套的电源。
详情介绍：
此系列的产品为紫外LED和深紫外LED发光管（UV,DEEPUV），波长包括240nm,245nm, 250nm,255nm,260nm, 265nm, 270nm, 275nm, 280nm, 285nm, 290nm, 300nm, 305nm, 310nm, 315nm, 320nm, 325nm,330nm, 335nm, 340nm,345nm, 350nm,355nm.封装窗口可以做成平面窗口，半球形窗口，球形窗口等。
所有波长LED均有配套的电源，可直接使用。

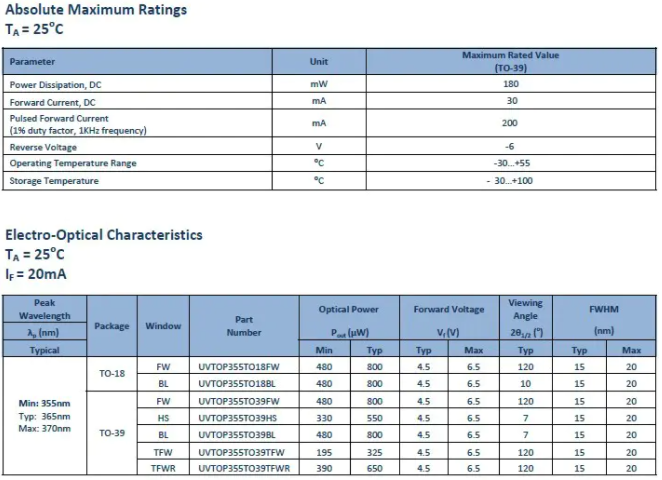

其中355nm波长的LED指标简要列出如下所示：
Notes:
Peak wavelength measurement tolerance is ± 3 nm
Optical power output measurement tolerance is ± 10%
Forward voltage measurement tolerance is ± 2%
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
