1.25Gbps SFP BiDi Transceiver, 2km Reach,(T1310/R1550)

Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 2km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features
¡ñ Dual data-rate of 1.25Gbps/1.063Gbps operation
¡ñ 1310nm FP laser and PIN photodetector for 2km transmission
¡ñ Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
¡ñ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
¡ñ Compatible with SONET OC-24-LR-1
¡ñ Compatible with RoHS
¡ñ +3.3V single power supply
¡ñ Operating case temperature range of 0°C to +70°C (Commercial) or -40°C to +85°C (Industrial)

Applications
¡ñ Gigabit Ethernet
¡ñ Fiber Channel
¡ñ Switch to Switch interface
¡ñ Switched backplane applications
¡ñ Router/Server interface
¡ñ Other optical transmission systems

Mechanical Dimensions

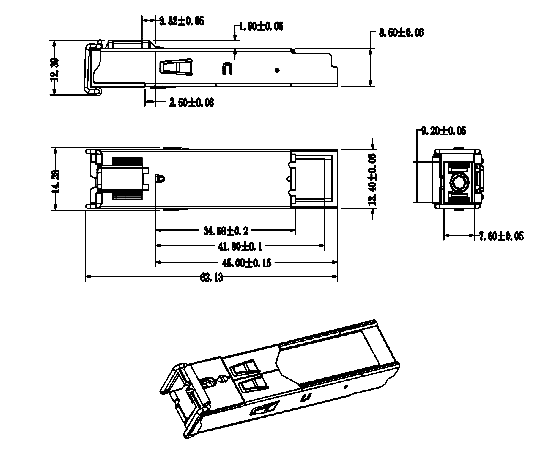

A.LC

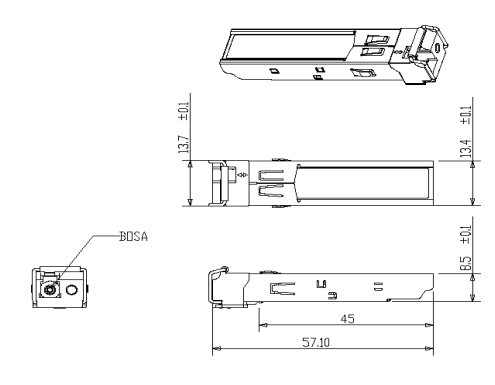

B.SC

Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÄúÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
